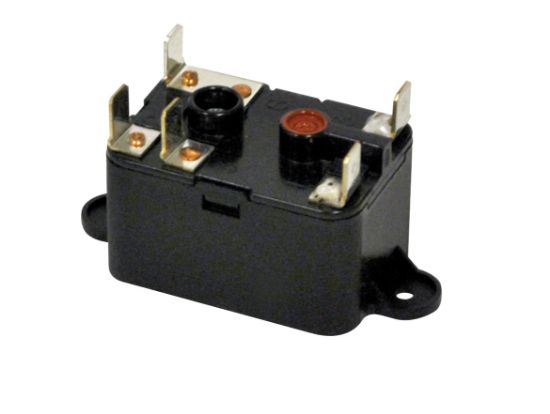

92293 RELAY SPDT 24V

92293 General Purpose Power Relay SPDT 24V Coil

Manufacturer: Motors & Armatures

$0.00

Qty:

General Purpose Power Relay, 922 Series, AMP: 55A Inrush, Specifications - UL Listed: Yes, 20.4V Pick-Up, 13.2V Hold, 4.8V Drop-Out, 24V Coil Volts, Contact Rating: Inductive: 8A at 125/250 VAC, Resistive: 16A at 125/250 VAC, 18A, SPDT Configuration, Connection Type: Quick Connect Terminal

Products specifications

products.specs.attributename	products.specs.attributevalue
AMP	55A Inrush
Configuration	SPDT
Connection Type	Quick Connect Terminal
Contact Rating	Inductive: 8A at 125/250 VAC, Resistive: 16A at 125/250 VAC, 18A
Specifications - UL Listed	Yes
Volts	20.4V Pick-Up, 13.2V Hold, 4.8V Drop-Out, 24V Coil
