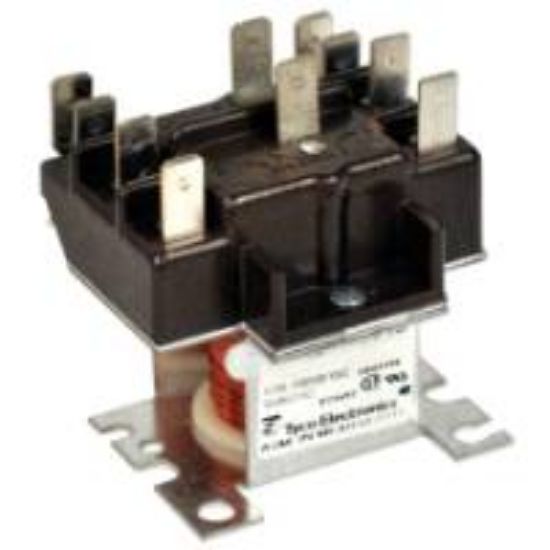

92341 RELAY DPDT 120V

92341 Heavy Duty Fan Relay, DPDT, 110/120V Coil

Manufacturer: Motors & Armatures

$0.00

Qty:

Products specifications

products.specs.attributename	products.specs.attributevalue
Configuration	DPDT
Connection Type	Quick Connect Terminal
Contact Rating	Resistive: 25A at 277 VAC, Inductive: 15A at 277 VAC, FLA: 12A at 120V, 6A at 277V, LRA: 60A at 120V, 35A at 277V
Frequency Rating	50/60Hz
Horsepower	3/4 hp at 120V, 3/4 hp at 277V
Specifications - UL Listed	Yes
Volts	Less Than or Equal to 96 VAC Pick-Up, 96 VAC Hold, Greater Than or Equal to 24 VAC Drop-Out, 110/120V Coil
