S++ MUEA23626L2

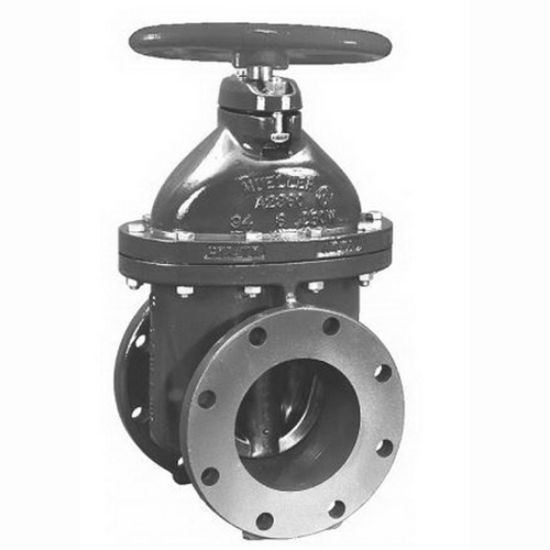

Open Left Resilient Wedge Gate Valve, A-2360-6 Series, 7 in. Length, Cast Iron, Coating: Pro-Gard Epoxy Fusion, End Connection 1: Flanged, End Connection 2: Flanged, Specifications - ASTM: ASTM A-126, ASTM B-138, ASTM B-62, Specifications - AWWA: AWWA C-509, AWWA C-550, Specifications - FM Approved: Yes, Specifications - NSF: NSF 61, Specifications - NSF Certified: Yes, Specifications - UL Listed: Yes, Valve Size: 2 in., Non-Rising Valve Stem, Rubber Stem and NitrBonnet O-Ring Valve Seal, Bronze Valve Stem, Other Physical Dimensions: 6 in. Flanged Diameter, 9.88 in. Inlet Centre to Top of Valve, 6 in Wheel Diameter, 4-3/4 in. Flanged Bolt Circle Diameter, 3/4 in. Flanged Hole, 2.3 in. Bore, Number of Holes: 4-Flanged, Cast Iron Handle, Pressure - Maximum: 250psig, Specifications - ANSI: ANSI B16.1, Valve Operator: Hand Wheel
