Picture of B-20284N LLC 2 FIP BALL CURB STOP&DRAIN

B-20284N LLC 2 FIP BALL CURB STOP&DRAIN

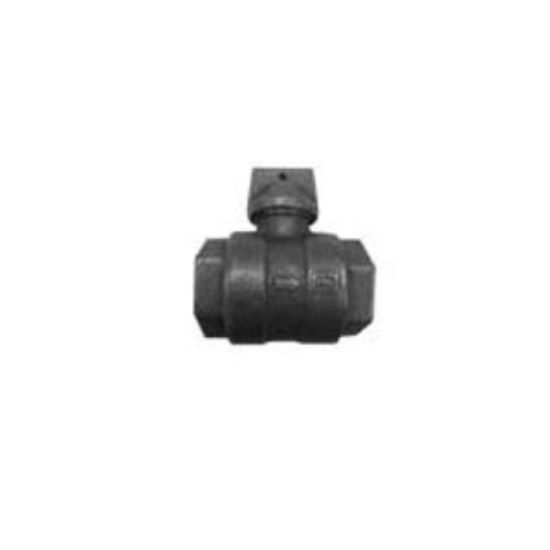

Mueller B-20284N.050 2 in. FIP Cast Brass Alloy Full Port 3-Piece Ball Curb Valve with Drain
Manufacturer: Mueller
$0.00
Mark II Oriseal Curb Valve with Drain, 5.56 in. Width, 6.05 in. Height, Cast Brass Alloy, End Connection 1: FNPT, Pressure - Maximum: 175psig, End Connection 2: FNPT, Specifications - ASTM: ASTM D-2000, Valve Operator: Tee Handle, Dimension: 3.7 in. Inlet Centre to Top of Valve, Rubber Top and O-Ring Valve Seal, Lead Law Compliant: Yes, Specifications - AWWA: AWWA C-800, Valve Body Style: 1-Piece, 2 in. Inlet/Service, 2 in. Outlet/Meter, Waterworks Application: Water
Products specifications
products.specs.attributename products.specs.attributevalue
End Connection FIPT x FIPT
End Connection 1 FIPT
End Connection 2 FIPT
Fitting Size 1 2 in.
Fitting Sizes 2 in.
Height 5-49/69 in.
Inlet/Service Size 2 in.
Lead Law Compliant Yes
Material Cast Brass Alloy
Maximum Temperature 180
Pressure - Maximum 300 psig
Specifications - ANSI ANSI B1.20.1
Specifications - ASME ASME B1.20.1
Specifications - AWWA AWWA C-800
Valve Body Style 3 Piece
Valve Port Opening Full Port
Valve Seat Material Stainless Steel
Width 4-24/25 in.
Product Type Water Service Brass Curb Stops
Size 2 in.
Valve Operator Tee Handle
