MUEB25219NPB1

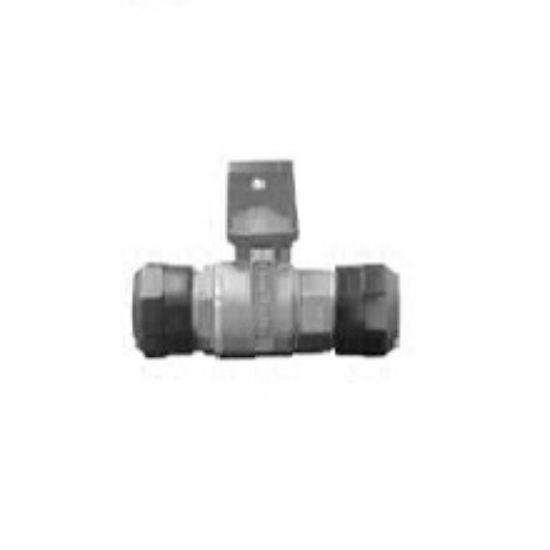

Mueller 300 B25219.25NPB Lead Free Cast Brass Alloy Full Port True Bi-Directional Flow Inline Ball Curb Valve with Drain, 1 in., CTS Compression

Manufacturer: Mueller

$0.00

Qty:

300 True Bi-Directional (2-Way) Flow Inline Ball Curb Valve with Drain, 3.73 in. Height, Cast Brass Alloy, End Connection 1: CTS Compression, End Connection 2: CTS Compression, 1 in. Inlet/Service, Lead Law Compliant: Yes, 1 in. Outlet/Meter, Pressure - Maximum: 300 psig, Specifications - ASTM: ASTM B-584 C-89833, ASTM B-62 C-83600, ASTM D-2000, ASTM D-2737 SDR-9, Specifications - AWWA: AWWA C-800, Maximum Temperature: 32 - 180F, EP O-Ring, Dyneon TFMI600 or Dupont PTFE TE-6473 Gasket Valve Seal, Dimension: 2.67 in. Inlet Centre to Top of Valve, Full Port Valve Port Opening, Brass Alloy Valve Stem, Stainless Steel Valve Seat, Brass Alloy Ball Valve Trim

Products specifications

products.specs.attributename	products.specs.attributevalue
Height	3.73 po
Material	Cast Brass Alloy
Dimension	2.67 in. Inlet Centre to Top of Valve
End Connection 1	CTS Compression
End Connection 2	CTS Compression
Inlet/Service Size	1 in.
Lead Law Compliant	Yes
Maximum Temperature	32 - 180F
Outlet/Metre Size	1 in.
Pressure - Maximum	300 psig
Specifications - AWWA	AWWA C-800
Valve Port Opening	Full Port
Valve Seal Material	EP O-Ring, Dyneon TFMI600 or Dupont PTFE TE-6473 Gasket
Valve Seat Material	Stainless Steel
Valve Stem Material	Brass Alloy
Valve Trim Material	Brass Alloy Ball
