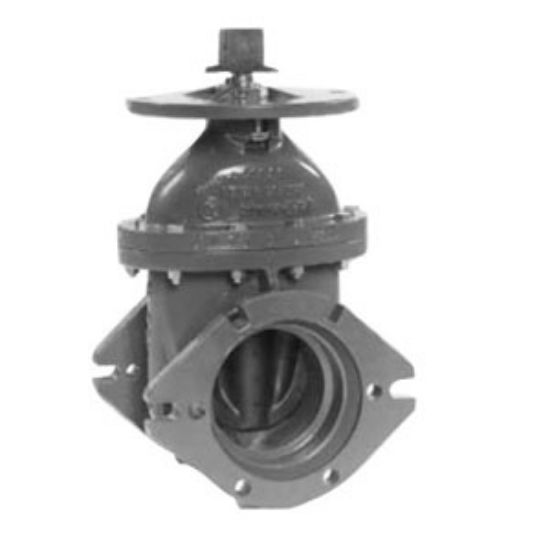

200MM (8) MJ PIV GATE VALVE OL

Open Left Resilient Wedge Gate Valve, P-2360-23 Series, 12-1/2 in. Length, Cast Iron, Coating: Pro-Gard Epoxy Fusion, End Connection 1: Mechanical Joint, End Connection 2: Mechanical Joint, Specifications - ASTM: ASTM A-126 Class B, ASTM B-138, ASTM D-2000, Specifications - AWWA: AWWA C-550, Specifications - FM Approved: Yes, Specifications - NSF: NSF 61, Specifications - NSF Certified: Yes, Specifications - UL Listed: Yes, Valve Size: 8 in., Non-Rising Valve Stem, Rubber Stem O-Ring and Bonnet Gasket Valve Seal, Bronze Valve Stem, Valve Operator: Wrench, Other Physical Dimensions: 13.37 in. Mechanical Joint Diameter, 21-1/2 in. Inlet Centre to Top of Valve, 0.88 in. Hole, 8.3 in. Bore, Number of Holes: 6-Mechanical Joint, Pressure - Maximum: 200 psig
