S++ MUER23616W41L4

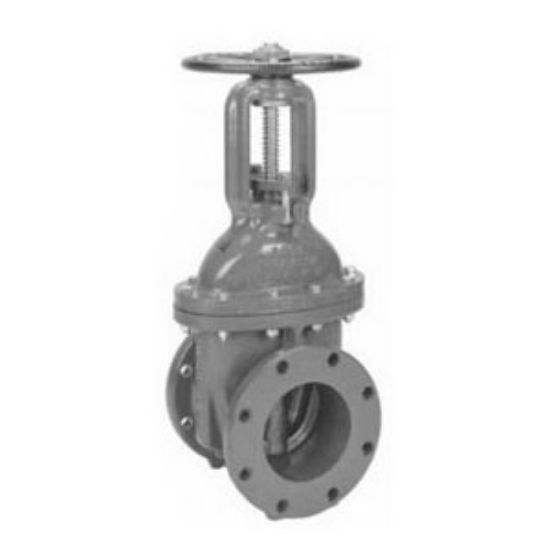

Mueller R2360-6L.100 Pro-Gard Epoxy Fusion Coated Cast Iron Handwheel Resilient Wedge Gate Valve with OSY, 4 in., Flanged

Manufacturer: Mueller

$0.00

Qty:

Resilient Wedge Gate Valve, R-2360-6 Series, 9 in. Length, Cast Iron, Coating: Pro-Gard Epoxy Fusion, End Connection 1: Flanged, End Connection 2: Flanged, Specifications - ASTM: ASTM A-126 Class B, ASTM B-138, Specifications - AWWA: AWWA C-550, Specifications - FM Approved: Yes, Specifications - NSF: NSF 61, Specifications - NSF Certified: Yes, Specifications - UL Listed: Yes, Valve Size: 4 in., Rubber Bonnet Gasket and NitrO-Ring Valve Seal, Bronze Valve Stem, Valve Operator: Hand Wheel, Other Physical Dimensions: 10 in. Wheel Diameter, 9 in. Flanged Diameter, 23.68 in. Open x 19 in. Closed Inlet Centre to Top of Valve, 3/4 in. Hole, Number of Holes: 8-Flanged, Valve Body Style: OSY, Cast Iron Wheel Handle, Pressure - Maximum: 200 psig

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	9 in.
Material	Cast Iron
Coating	Pro-Gard Epoxy Fusion
End Connection 1	Flanged
End Connection 2	Flanged
Handle Material	Cast Iron Wheel
Number of Holes	8-Flanged
Pressure - Maximum	200 psig
Specifications - AWWA	AWWA C-550
Specifications - FM Approved	Yes
Specifications - NSF	NSF 61
Specifications - NSF Certified	Yes
Specifications - UL Listed	Yes
Valve Body Style	OSY
Valve Operator	Hand Wheel
Valve Seal Material	Rubber Bonnet Gasket and Nitrite O-Ring
Valve Size	4 in.
Valve Stem Material	Bronze
