S++ MUER23616W41L6

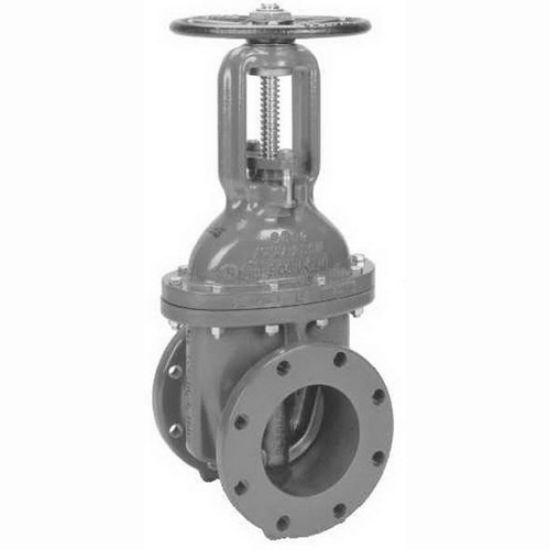

Mueller R2360-6L.150 Cast Iron Open Left Resilient Wedge Gate Valve, 6 in., Flanged
Open Left Resilient Wedge Gate Valve, R-2360-6 Series, 10-1/2 in. Length, Cast Iron, Coating: Pro-Gard Epoxy Fusion, End Connection 1: Flanged, End Connection 2: Flanged, Specifications - ASTM: ASTM A-126 Class B, ASTM B-138, Specifications - AWWA: AWWA C-550, Specifications - FM Approved: Yes, Specifications - NSF: NSF 61, Specifications - NSF Certified: Yes, Specifications - UL Listed: Yes, Valve Size: 6 in., NitrO-Ring and Rubber Bonnet Gasket Valve Seal, Bronze Valve Stem, Other Physical Dimensions: 12 in. Wheel Diameter, 11 in. Flanged Diameter, 31.38 in. Open x 24-1/2 in. Closed Inlet Centre to Top of Valve, 0.88 in. Hole, Number of Holes: 8-Flanged, Cast Iron Handle, Pressure - Maximum: 200psig, Valve Body Style: OSY, Valve Operator: Hand Wheel
