S++ MUET236219L12

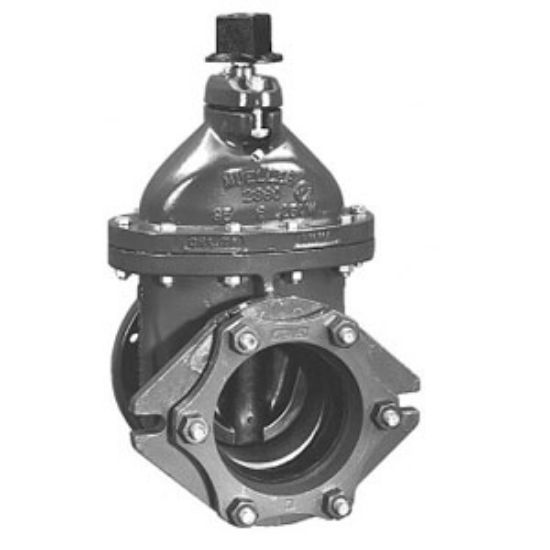

Open Left Resilient Wedge Tapping Valve, T-2360-19 Series, 15.24 in. Length, Cast Iron, End Connection 1: Mechanical Joint, End Connection 2: Flanged, Specifications - ASTM: ASTM A-126 Class B, ASTM B-138, ASTM D-2000, Specifications - AWWA: AWWA C-509, AWWA C-111, AWWA C-550, Specifications - FM Approved: Yes, Specifications - MSS: MSS SP-60, Specifications - UL Listed: Yes, Valve Size: 12 in., Non-Rising Valve Stem, Waterworks Application: Water, Rubber Stem O-Ring and Bonnet Gasket Valve Seal, Bronze Valve Stem, Other Physical Dimensions: 19 in. Mechanical Joint x 17.94 in. Flanged Diameter, 28.62 in. Inlet Centre to Top of Valve, 16-1/4 in. Mechanical Joint x 17 in. Flanged Bolt Circle Diameter, 0.88 in. Mechanical Joint x 1 in. Flanged Hole, 12.3 in. Bore, Coating: Pro-Gard Epoxy Fusion, Number of Holes: 8-Mechanical Joint x 12-Flanged, Pressure - Maximum: 250 psig, Specifications - ANSI: ANSI B16.1, Specifications - NSF: NSF 61, Specifications - NSF Certified: Yes, Valve Operator: Wrench
