MUEW0PN791

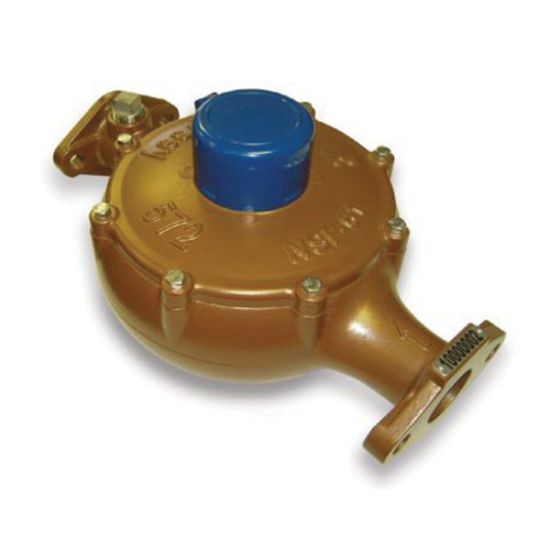

Mueller Hersey 572DI 500 D Series Lead Free Ductile Iron Magnetic Drive Positive Displacement Disc Meter, 2 x 2 in., 0.1 Cubic Meter

Manufacturer: Mueller

$0.00

Qty:

Hersey Magnetic Drive Positive Displacement Disc Meter, 500 D Series, Model: 572DI, 17 in. Length, 10.437 in. Width, 8-1/8 in. Height, Material: Ductile Iron, Colour/Finish Name: Nylon Coated, End Connection 1: Flanged, End Connection 2: Flanged, Fitting Size 1: 2 in., Fitting Size 2: 2 in., Flow Rate: 8 - 160 gpm at 100% Accuracy (Plus or Minus 1.5%), Maximum Temperature: 33 - 100F, Pressure - Maximum: 150 psi, Specifications - AWWA: AWWA C700, Specifications - NSF: NSF 61, Specifications - NSF Certified: Yes, Measuring System: 0.1 Cubic Meter, Lead Law Compliant: Yes

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	17 in.
Width	10.437 in.
Height	8-1/8 in.
Material	Ductile Iron
Colour/Finish Name	Nylon Coated
End Connection 1	Flanged
End Connection 2	Flanged
Fitting Size 1	2 in.
Fitting Size 2	2 in.
Lead Law Compliant	Yes
Maximum Temperature	33 - 100F
Measuring System	0.1 Cubic Metre
Pressure - Maximum	150 psi
Specifications - AWWA	AWWA C700
Specifications - NSF	NSF 61
Specifications - NSF Certified	Yes
