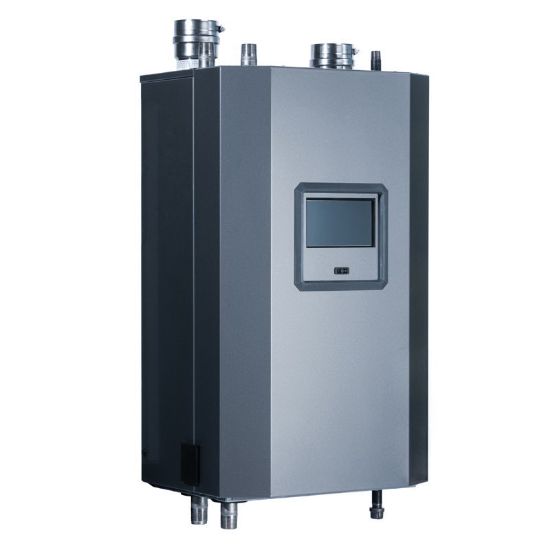

TFT154 GAS BOILER

NY Thermal Trinity TFT-154 High-Efficiency Natural/LP Gas Condensing Boiler, 120 VAC, 12A, 1 PH, 15.4 - 154 MBH Input, 141000 btu/hr Heat

Manufacturer: New York Thermal

$0.00

Qty:

Trinity High-Efficiency Gas-Fired Condensing Boiler, TFT Series, 14-1/2 in. Length, 19-3/4 in. Width, 33-3/8 in. Height, 95% AFUE, AMP: 12A, 141000 btu/hr BTU Heat Rating, Energy Star Compliant: Yes, Fuel Type: Natural/LP Gas, Direct Spark Ignition System, Input: 15.4 - 154 MBH, Specifications - ANSI: ANSI Z21.13, Specifications - ASME: ASME Section IV, ASME H, Specifications - CSA Certified: CSA 4.9, Supply Pipe Connection Size: 1 in. MNPT Water, 1/2 in. MNPT Gas, 120 VAC Volts, Pressure - Maximum: 30 psi Relief Valve, Vent Size: 3 in., Phase: 1 PH, NET IBR Rating: 122000 btu/hr, 60Hz Frequency Rating

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	14-1/2 in.
Width	19-3/4 in.
Height	33-3/8 in.
AFUE	95%
AMP	12A
BTU Heat Rating	141000 btu/hr
Energy Star Compliant	Yes
Frequency Rating	60Hz
Fuel Type	Natural/LP Gas
Ignition System	Direct Spark
Input	15.4 - 154 MBH
NET IBR Rating	122000 btu/hr
Phase	1 PH
Pressure - Maximum	30 psi Relief Valve
Specifications - ANSI	ANSI Z21.13
Specifications - ASME	ASME Section IV, ASME H
Specifications - CSA Certified	CSA 4.9
Supply Pipe Connection Size	1 in. MNPT Water, 1/2 in. MNPT Gas
Vent Size	3 in.
Volts	120 VAC
