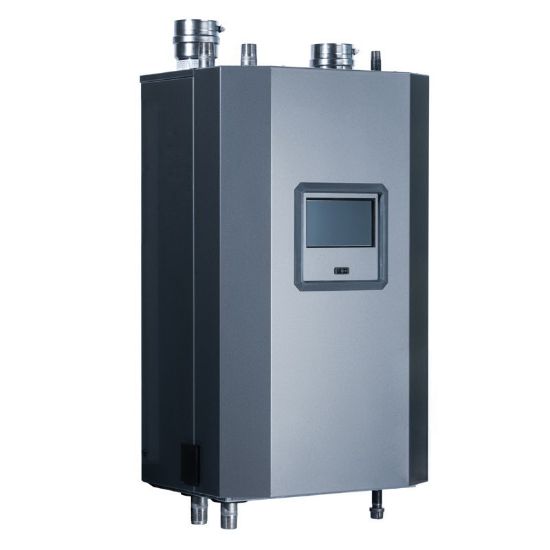

TFT-85 GAS BOILER

NY Thermal TFT85 High Efficiency Condensing Gas Modulating Boiler, 120 VAC, 12A, 1 PH, 17000 - 85000 btu/hr Input, 78000 btu/hr Heat

Manufacturer: New York Thermal

$0.00

Qty:

High Efficiency Condensing Gas Modulating Boiler, 19-3/4 in. Length, 14-1/2 in. Width, 40-3/4 in. Height, Pressure - Maximum: 30 psi Relief Valve, 60 psi Pressure Gauge, Colour/Finish Name: Metallic Clear, Phase: 1 PH, 120 VAC Volts, 60Hz Frequency Rating, AMP: 12A, Energy Star Compliant: Yes, 95% AFUE, Specifications - CSA Certified: CSA 4.9, 5 - 24.9kW Input, 22.8kW Heating Watts, 78000 btu/hr BTU Heat Rating, Direct Spark Ignition System, Input: 17000 - 85000 btu/hr, Supply Pipe Connection Size: 1 in. MNPT Water, 1/2 in. MNPT Gas, 2 or 3 in. Vent Diameter, Specifications - ANSI: ANSI Z21.13, Specifications - ASME: ASME Section IV, ASME H, NET IBR Rating: 68000 btu/hr

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	19-3/4 in.
Width	14-1/2 in.
Height	40-3/4 in.
AFUE	95%
AMP	12A
BTU Heat Rating	78000 btu/hr
Colour/Finish Name	Metallic Clear
Energy Star Compliant	Yes
Frequency Rating	60Hz
Ignition System	Direct Spark
Input	17000 - 85000 btu/hr
NET IBR Rating	68000 btu/hr
Phase	1 PH
Pressure - Maximum	30 psi Relief Valve, 60 psi Pressure Gauge
Specifications - ANSI	ANSI Z21.13
Specifications - ASME	ASME Section IV, ASME H
Specifications - CSA Certified	CSA 4.9
Supply Pipe Connection Size	1 in. MNPT Water, 1/2 in. MNPT Gas
Vent Diameter	2 or 3 in.
Volts	120 VAC
Watts	5 - 24.9kW Input, 22.8kW Heating
