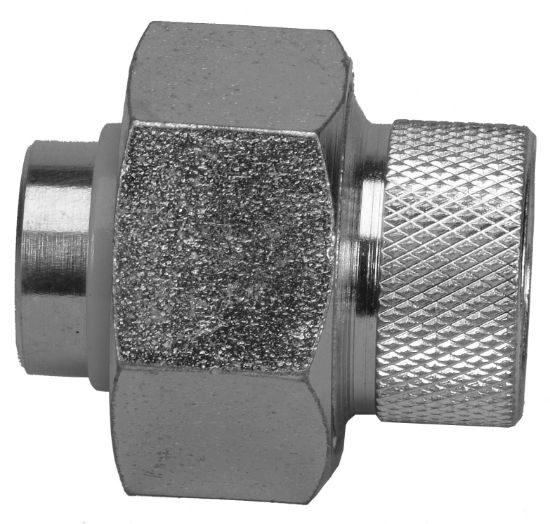

Picture of 3/4 FIP X SWT LF DIELECTRIC UNION

3/4 FIP X SWT LF DIELECTRIC UNION

PROFLO PFXCCS33 PFXCCS Series Lead Free 3/4 in. x 3/4 in. FIP x Sweat Dielectric Union
Manufacturer: Proflo
$0.00
This PFXCCS water heater connector is made of zinc-plated forged carbon steel/brass. It measures 2-3/100 inches length x 1-17/20 inches width and has a 3/4 inch FIP x 3/4 inch Copper sweat end connection. The UPC/IAPMO listed connector has a pressure rating of 250 PSI at 180 degrees Fahrenheit or 50 PSI at 300 degrees Fahrenheit and 10uA measured at 600 Volts AC or 3uA measured at 2000 Volts DC. It meets ANSI 372, ANSI 61, ANSI A108, ANSI B16.22, ASME A108, ASME B1.20.1, ASSE 1079-2012, NSF 372 and NSF 61 standards. The connector includes an EPDM rubber gasket and polysulfone sleeve.
Products specifications
products.specs.attributename products.specs.attributevalue
End Connection FIP x Sweat
End Connection 1 FIP
End Connection 2 Sweat
Fitting Size 1 3/4 in.
Fitting Size 2 3/4 in.
Fitting Sizes 3/4 in. x 3/4 in.
Lead Law Compliant Yes
Length 2-3/10 in.
Material Forged Brass;Forged Carbon Steel;Plastique;Rubber;Zinc Plated
Material Type EPDM;Polysulfone
Maximum Temperature 180
Pressure - Maximum 250 psi
Specifications - ANSI ANSI 372;ANSI 61;ANSI A108;ANSI B16.22;ANSI B1.20.1
Specifications - ASME ASME A108;ASME B1.20.1
Specifications - ASSE Standards ASSE 1079-2012
Specifications - IAPMO Listed Yes
Specifications - NSF NSF 372;NSF 61
Specifications - NSF Certified Yes
Style Name PFXCCS Series
Temperature Range Up to 180 Deg F
Product Type Dielectric Unions
Size 3/4 in. x 3/4 in.
Specifications - UL Listed No
Width 1-17/20 in.
Application Residential
Lead Law Compliance Level Yes
