LLC 5/8X3/8 OD COMP QT ANG ST LK C

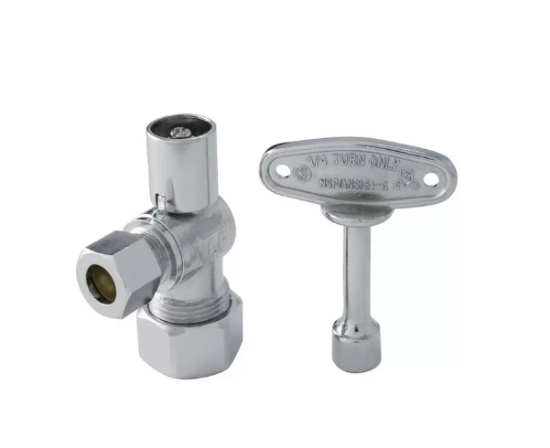

PROFLO PFXQAC32CLK Lead Free 5/8 in. x 3/8 in. OD Compression x Compression Brass Quarter Angle Stop Valve, Chrome Plated
Manufacturer: Proflo
$0.00
Products specifications
products.specs.attributename products.specs.attributevalue
Colour/Finish Category Chromes
Colour/Finish Name Chrome Plated
End Connection OD Compression x Compression
End Connection 1 OD Compression
End Connection 2 Compression
Lead Law Compliant Yes
Material Brass
Maximum Temperature 160
Pressure - Maximum 125 psi
Specifications - ANSI ANSI 14 2010A;ANSI 372 2016;ANSI 61.9
Specifications - ASME ASME A112.18.1 2005;ASME A112.18.1 2018
Specifications - CSA Certified CSA B125.1 2005;CSA B125.1 2018
Specifications - NSF NSF 14 2010A;NSF 372;NSF 372 2016;NSF 61.9
Specifications - NSF Certified Yes
Valve Body Style 1 piece
Valve Operator Quarter Turn
Valve Size 5/8 in. x 3/8 in.
Valve Type Angle Supply Stop Valve
Product Type Supply Stop Valves
Pressure - High 125 psi
Size 5/8 in. x 3/8 in.
Specifications - IAPMO Listed Yes
Specifications - UL Listed No
Valve Body Material Brass
Lead Law Compliance Level Yes
