51-23055-11 COND.FAN MTR 1/5HP 1SPD 1075

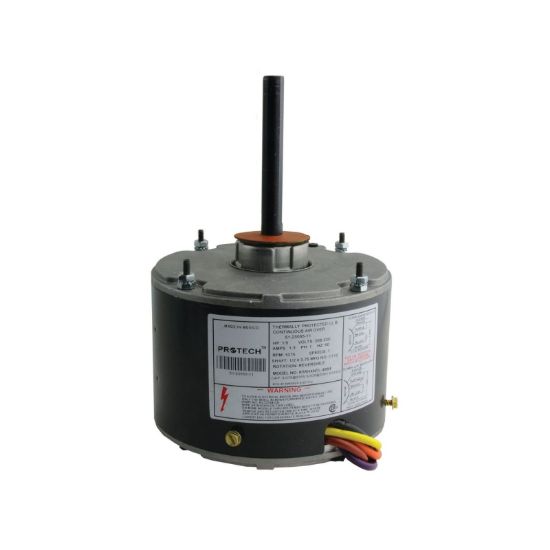

Protech 51-23055-11 Direct Drive Condenser Fan Motor MBH, 1/5 hp, 1-Speed, 1075 RPM, 208 - 230 VAC

Manufacturer: Rheem

$0.00

Qty:

Condenser Fan Motor, 7-13/16 in. Length, 7 in. Width, 7.2 in. Height, Diameter: 5-5/8 in., Phase: 1 PH, 208 - 230 VAC Volts, 60Hz Frequency Rating, AMP: 1.3A, 1075 RPM, Horsepower: 1/5 hp, Mounting Type: Shell-Band, Shell-Screw, Thru-Bolt, Frame Size: 48 NEMA, 1-Speed, Direct Drive Blower, 4-1/4 in. Length x 1/2 in. Diameter Shaft

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	7-13/16 in.
Width	7 in.
Height	7.2 po
AMP	1.3A
Blower Type	1-Speed, Direct Drive
Diameter	5-5/8 in.
Frame Size	48 NEMA
Frequency Rating	60Hz
Horsepower	1/5 hp
Motor Type	Shell-Band, Shell-Screw, Thru-Bolt
Phase	1 PH
RPM	1075 RPM
Shaft Size	4-1/4 in. Length x 1/2 in. Diameter
Volts	208 - 230 VAC
