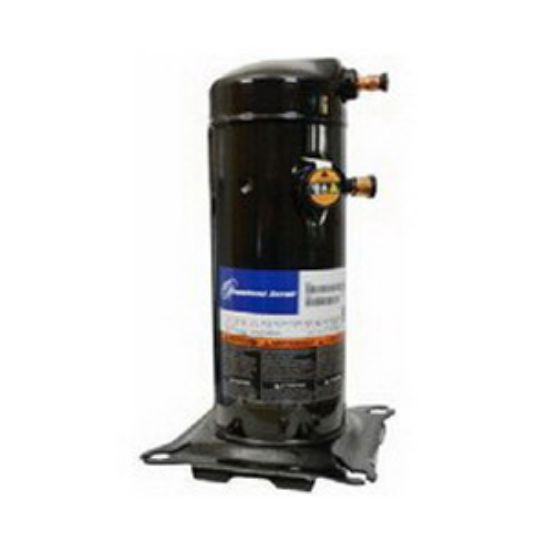

55-102045-31S COMPRESSOR ZP24K5E-PFV-830

Protech 55-102045-31S Scroll Compressor, 24000 btu/hr, R-410A, 208 - 230 VAC at 60Hz, 1 PH, 14.3A

Manufacturer: Rheem

$0.00

Qty:

Scroll Compressor, 9.6 in. Length, 9.6 in. Width, 15.3 in. Height, Temperature Rating: 45 - 50F Evaporator, 100 - 130F Condensing, 65 - 70F Return Gas, 85 - 115F Liquid, BTU: 24000 btu/hr, 10 EER, Phase: 1 PH, R-410A Refrigerant, 208 - 230 VAC Volts, 60Hz Frequency Rating, AMP: 14.3A, 66 - 71 dBA Decibel Rating, 3500 RPM, 2400W Power Rating, Locked Rotor AMP: 64A, Suction Line (OD): 3/4 in., Liquid Line (OD): 1/2 in., 353 - 403 lbs/hr Mass Flow

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	9.6 in.
Width	9.6 in.
Height	15.3 po
AMP	14.3A
BTU	24000 btu/hr
Decibel Rating	66 - 71 dBA
EER	10
Frequency Rating	60Hz
Liquid Line (OD)	1/2 in.
Locked Rotor AMP	64A
Mass Flow	353 - 403 lbs/hr
Phase	1 PH
Power Rating	2400W
Refrigerant	R-410A
RPM	3500 RPM
Suction Line (OD)	3/4 in.
Temperature Rating	45 - 50F Evaporator, 100 - 130F Condensing, 65 - 70F Return Gas, 85 - 115F Liquid
Volts	208 - 230 VAC
