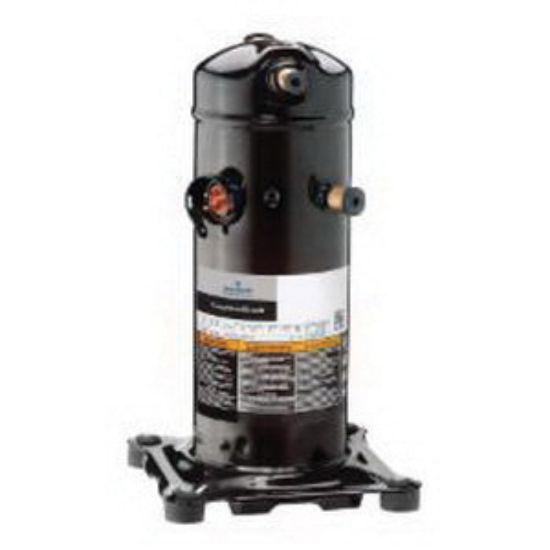

55-23156-36S COMPRESSOR ZPS30K5E-PFV-830

Protech 55-23156-36S Scroll Compressor, 30000 btu/hr, R-410A, 208 - 230 VAC at 60Hz, 1 PH, 19A

Manufacturer: Rheem

$0.00

Qty:

Scroll Compressor, 13.1 in. Length, 14.8 in. Width, 2.2 in. Height, Temperature Rating: 45 - 50F Evaporator, 100 - 130F Condensing, 65 - 70F Return Gas, 85 - 115F Liquid, BTU: 30000 btu/hr, 15.55 EER, Phase: 1 PH, R-410A Refrigerant, 208 - 230 VAC Volts, 60Hz Frequency Rating, AMP: 19A, 70 - 75 dBA Decibel Rating, 3500 RPM, 2980W Power Rating, Locked Rotor AMP: 83A, Suction Line (OD): 3/4 in., Liquid Line (OD): 1/2 in., 451 - 505 lbs/hr Mass Flow

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	13.1 in.
Width	14.8 in.
Height	2.2 po
AMP	19A
BTU	30000 btu/hr
Decibel Rating	70 - 75 dBA
EER	15.55
Frequency Rating	60Hz
Liquid Line (OD)	1/2 in.
Locked Rotor AMP	83A
Mass Flow	451 - 505 lbs/hr
Phase	1 PH
Power Rating	2980W
Refrigerant	R-410A
RPM	3500 RPM
Suction Line (OD)	3/4 in.
Temperature Rating	45 - 50F Evaporator, 100 - 130F Condensing, 65 - 70F Return Gas, 85 - 115F Liquid
Volts	208 - 230 VAC
