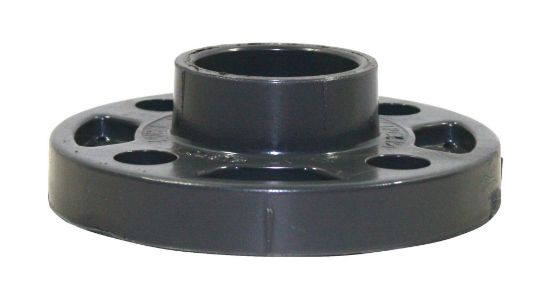

Picture of 2-1/2 SCH 80 PVC SW FLANGE 36229

2-1/2 SCH 80 PVC SW FLANGE 36229

Xirtec 2-1/2 in. Socket Schedule 80 PVC Flange
Manufacturer: Generic / Generique
$0.00
The Xirtec vinyl process piping system offers a complete line of pipe, fittings, flanges, strainers/valves for all your process system requirements. This high-performance vinyl system is designed to meet the temperature, pressure/flow requirements of piping systems used in chemical processes/other industrial applications. Xirtec PVC will not rust, pit, scale or corrode, ensuring superior underground performance, outstanding resistance to a wide range of chemicals/improved airflow. Durable yet lightweight, components are easily handled, stored, cut/joined. With an extended service life, low maintenance requirements/a low thermal conductivity factor, this vinyl process piping system is an excellent alternative to metal systems. It is potable-water approved/has an exceptional temperature range to a maximum of 60 Degrees C (140 Degrees F) under pressure. Pipe/fittings are available in Schedule 40/80 thicknesses. Socketed One-Piece Flanges are available in 1/2" through 8" sizes.
Products specifications
products.specs.attributename products.specs.attributevalue
Colour/Finish Category Greys
Colour/Finish Name Grey
Diameter 2-1/2 in.
End Connection Socket x Socket
End Connection 1 Socket
End Connection 2 Socket
Fitting Size 1 2-1/2 in.
Fitting Size 2 2-1/2 in.
Fitting Sizes 2-1/2 in. x 2-1/2 in.
Height 2-1/10 in.
Length 7 in.
Material Plastic
Material Type PVC
Maximum Temperature 180
Package Quantity Box of 5
Pressure - Maximum 150 psi
Schedule 80
Specifications - ASTM ASTM D-1784;ASTM D-2464;ASTM D-2467;ASTM F-1970
Specifications - CSA Certified Yes
Specifications - NSF NSF 14;NSF 61;NSF pw/G
Specifications - NSF Certified Yes
Style Name Xirtec
Weight 25.66 lb
Flange Type Socket Weld
Origin USA
Product Type Plastic Flanges
Width 7 in.
Application Pressure
