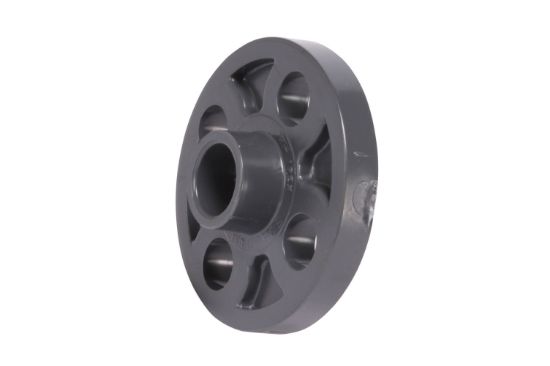

Picture of 1/2 SCH 80 PVC SW FLANGE 36223

1/2 SCH 80 PVC SW FLANGE 36223

Xirtec 1/2 in. Socket Schedule 80 PVC Flange
Manufacturer: Generic / Generique
$0.00
The Xirtec vinyl process piping system offers a complete line of pipe, fittings, flanges, strainers/valves for all your process system requirements. This high-performance vinyl system is designed to meet the temperature, pressure/flow requirements of piping systems used in chemical processes/other industrial applications. Xirtec PVC will not rust, pit, scale or corrode, ensuring superior underground performance, outstanding resistance to a wide range of chemicals/improved airflow. Durable yet lightweight, components are easily handled, stored, cut/joined. With an extended service life, low maintenance requirements/a low thermal conductivity factor, this vinyl process piping system is an excellent alternative to metal systems. It is potable-water approved/has an exceptional temperature range to a maximum of 60 Degrees C (140 Degrees F) under pressure. Pipe/fittings are available in Schedule 40/80 thicknesses. Socketed One-Piece Flanges are available in 1/2" through 8" sizes.
Products specifications
products.specs.attributename products.specs.attributevalue
Diameter 1/2 in.
End Connection Socket x Socket
End Connection 1 Socket
End Connection 2 Socket
Fitting Size 1 1/2 in.
Fitting Size 2 1/2 in.
Fitting Sizes 1/2 in. x 1/2 in.
Height 1-1/10 in.
Length 3-3/5 in.
Material Plastic
Material Type PVC
Maximum Temperature 180
Schedule 80
Specifications - ASTM ASTM F-1970
Specifications - CSA Certified Yes
Specifications - NSF NSF pw/G
Specifications - NSF Certified Yes
Style Name Xirtec
Weight 197.70 lb
Origin USA
Product Type Plastic Flanges
Application Pressure
Width 3-3/5 in.
Number of Pieces 1
