RAW207A1E

207A 1-1/4"CC SLD BZ #125 GATE VALVE

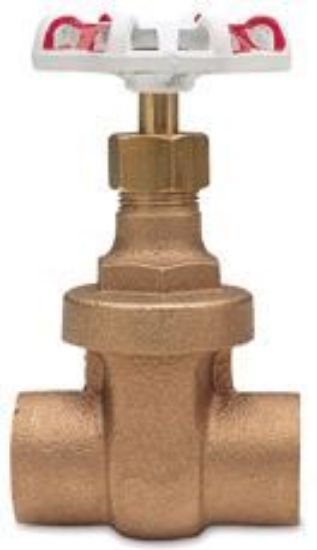

Red & White 001-70308 Model 207A 1-1/4 in. Solder Cast Bronze Handwheel Non-Rising 125# Gate Valve
Manufacturer: Red & White
$0.00
Toyo Gate Valve, Model: 207A, 78mm Length, Cast Bronze, End Connection 1: Solder (Copper), Pressure - Maximum: 200 psi WOG, End Connection 2: Solder (Copper), Specifications - ASTM: ASTM B-62 C-83600, ASTM B-85 SC114A, Other Physical Dimensions: 119mm Inlet Centre to Top of Valve, 70mm Wheel Diameter, Valve Operator: Hand Wheel, Valve Size: 1-1/4 in., Aluminum Alloy Handle, DZR Brass Valve Stem, Bronze Valve Disc, Specifications - ASME: ASME B16.18, Pressure Class: 125#, 0.86 MPa Saturated Steam Working Pressure, Non-Rising Valve Stem
Products specifications
products.specs.attributename products.specs.attributevalue
End Connection Solder
End Connection 1 Solder
End Connection 2 Solder
Height 4-17/25 in.
Length 3-7/100 in.
Material Cast Bronze
Pressure - Maximum 200 psi
Pressure Class 125#
Recommended Valve Application Water;Oil;Gas
Specifications - ASME ASME B16.18
Specifications - ASTM ASTM B-62 C-83600;ASTM B-86 AG40A
Style Name Model 207A
Valve Disc Material Bronze
Valve Operator Wheel Handle
Valve Size 1-1/4 in.
Valve Stem Non-Rising
Valve Type Gate Valve
Product Type Gate Valves
