RAW207A3

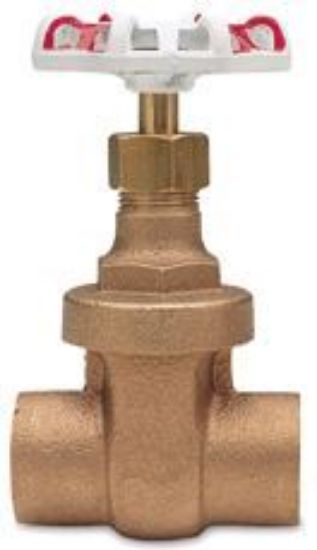

Toyo 207A 125# Cast Bronze Hand Wheel Non-Rising Stem Gate Valve, 3 in., Solder (Copper)

Manufacturer: Red & White

$0.00

Qty:

Toyo Gate Valve, Model: 207A, Cast Bronze, End Connection 1: Solder (Copper), Pressure - Maximum: 200 psi WOG, End Connection 2: Solder (Copper), Specifications - ASTM: ASTM B-62 C-83600, ASTM B-85 SC114A, Valve Operator: Hand Wheel, Valve Size: 3 in., Aluminum Alloy Handle, DZR Brass Valve Stem, Bronze Valve Disc, Specifications - ASME: ASME B16.18, Pressure Class: 125#, 0.86 MPa Saturated Steam Working Pressure, Non-Rising Valve Stem

Products specifications

products.specs.attributename	products.specs.attributevalue
Material	Cast Bronze
End Connection 1	Solder (Copper)
End Connection 2	Solder (Copper)
Handle Material	Aluminum Alloy
Pressure - Maximum	200 psi WOG
Pressure Class	125#
Specifications - ASME	ASME B16.18
Valve Disc Material	Bronze
Valve Operator	Hand Wheel
Valve Size	3 in.
Valve Stem	Non-Rising
Valve Stem Material	DZR Brass
Working Pressure	0.86 MPa Saturated Steam
