RAW207AK

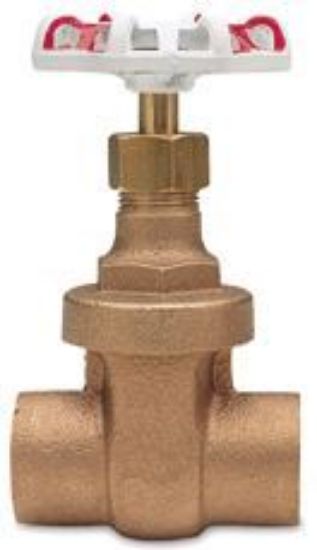

207A 1/2" Solder 125# Cast Bronze Hand Wheel Non-Rising Stem Gate Valve

Manufacturer: Red & White

$0.00

Qty:

Toyo Gate Valve, Model: 207A, 46mm Length, Cast Bronze, End Connection 1: Solder (Copper), Pressure - Maximum: 200 psi WOG, End Connection 2: Solder (Copper), Specifications - ASTM: ASTM B-62 C-83600, ASTM B-86 AG40A, Other Physical Dimensions: 81mm Inlet Centre to Top of Valve, 48mm Wheel Diameter, Valve Operator: Hand Wheel, Valve Size: 1/2 in., Zinc-Aluminum Alloy Handle, DZR Brass Valve Stem, Bronze Valve Disc, Specifications - ASME: ASME B16.18, Pressure Class: 125#, 0.86 MPa Saturated Steam Working Pressure, Non-Rising Valve Stem

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	46mm
Material	Cast Bronze
End Connection 1	Solder (Copper)
End Connection 2	Solder (Copper)
Handle Material	Zinc-Aluminum Alloy
Pressure - Maximum	200 psi WOG
Pressure Class	125#
Specifications - ASME	ASME B16.18
Valve Disc Material	Bronze
Valve Operator	Hand Wheel
Valve Size	1/2 in.
Valve Stem	Non-Rising
Valve Stem Material	DZR Brass
Working Pressure	0.86 MPa Saturated Steam
