RAW210A1

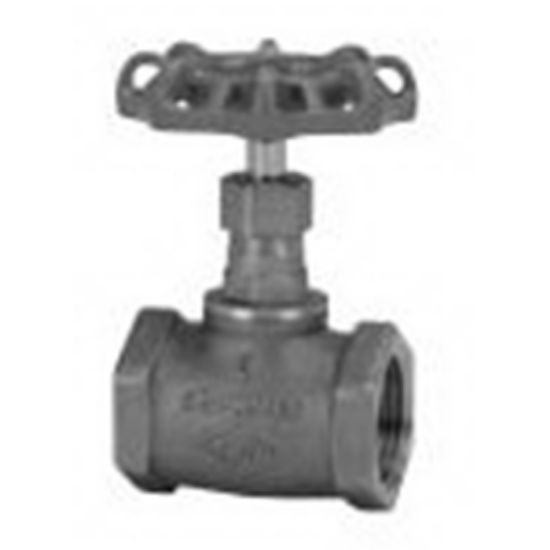

210A 1" Threaded 100# Cast Bronze Screwed Bonnet Hand Wheel Globe Valve

Manufacturer: Red & White

$0.00

Qty:

Toyo Globe Valve, Model: 210A, 63mm Length, Cast Bronze, End Connection 1: Threaded, Pressure - Maximum: 1.03 MPa WOG (Non-Shock), End Connection 2: Threaded, Specifications - ASTM: ASTM B-584, ASTM B-85 SC114A, Other Physical Dimensions: 95mm Inlet Centre to Top of Valve, 70mm Wheel Diameter, Valve Operator: Hand Wheel, Valve Size: 1 in., Aluminum Alloy Handle, DZR Brass Valve Stem, Bronze Valve Disc, Specifications - ASME: ASME B1.20.1, 8.5 Flow Co-Efficient (Cv), Pressure Class: 100#, 0.68 MPa Saturated Steam Working Pressure, Screwed Valve Bonnet

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	63mm
Material	Cast Bronze
End Connection 1	Threaded
End Connection 2	Threaded
Flow Co-Efficient (Cv)	8.5
Handle Material	Aluminum Alloy
Pressure - Maximum	1.03 MPa WOG (Non-Shock)
Pressure Class	100#
Specifications - ASME	ASME B1.20.1
Valve Bonnet Type	Screwed
Valve Disc Material	Bronze
Valve Operator	Hand Wheel
Valve Size	1 in.
Valve Stem Material	DZR Brass
Working Pressure	0.68 MPa Saturated Steam
