RAW210AK

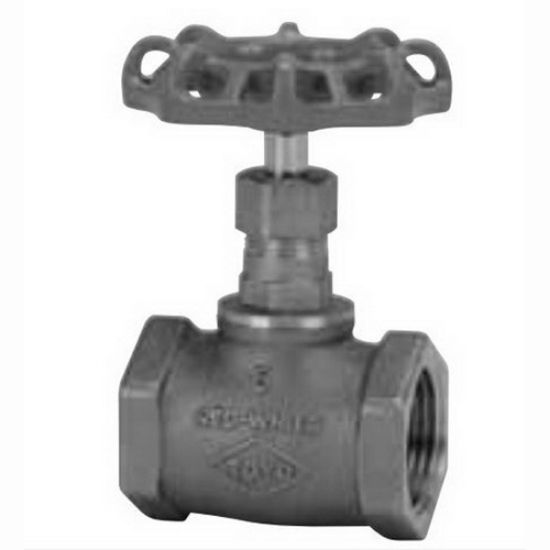

210A 1/2" Threaded 100# Cast Bronze Screwed Bonnet Hand Wheel Globe Valve

Manufacturer: Red & White

$0.00

Qty:

Toyo Globe Valve, Model: 210A, 48mm Length, Cast Bronze, End Connection 1: Threaded, End Connection 2: Threaded, Aluminum Alloy Handle, Pressure - Maximum: 1.03 MPa WOG (Non-Shock), 100# Pressure Class, Specifications - ASME: ASME B1.20.1, Specifications - ASTM: ASTM B-584, ASTM B-85 SC114A, Screwed Valve Bonnet Type, Bronze Valve Disc, Valve Operator: Hand Wheel, Valve Size: 1/2 in., DZR Brass Valve Stem, Other Physical Dimensions: 69mm Inlet Centre to Top of Valve, 55mm Wheel Diameter, 0.68 MPa Saturated Steam Working Pressure, 3 Flow Co-Efficient (Cv)

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	48mm
Material	Cast Bronze
End Connection 1	Threaded
End Connection 2	Threaded
Flow Co-Efficient (Cv)	3
Handle Material	Aluminum Alloy
Pressure - Maximum	1.03 MPa WOG (Non-Shock)
Pressure Class	100#
Specifications - ASME	ASME B1.20.1
Valve Bonnet Type	Screwed
Valve Disc Material	Bronze
Valve Operator	Hand Wheel
Valve Size	1/2 in.
Valve Stem Material	DZR Brass
Working Pressure	0.68 MPa Saturated Steam
