RAW211A2K

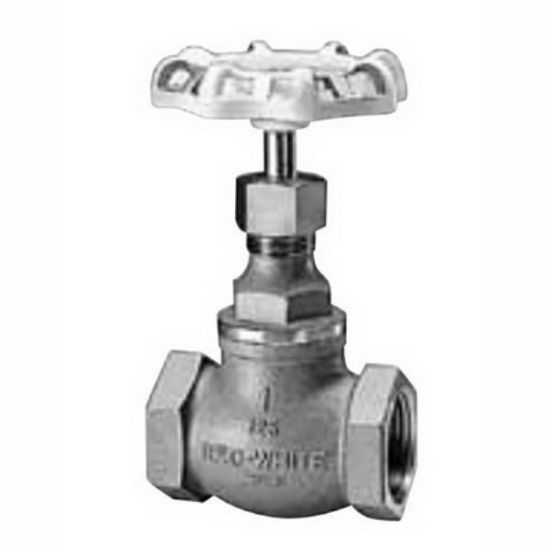

Toyo 211A 125# Cast Bronze Screwed Bonnet Hand Wheel Globe Valve, 2-1/2 in., Threaded

Manufacturer: Red & White

$0.00

Qty:

Toyo Globe Valve, Model: 211A, 150mm Length, Cast Bronze, End Connection 1: Threaded, End Connection 2: Threaded, Aluminum Alloy Handle, Pressure - Maximum: 1.37 MPa WOG (Non-Shock), 125# Pressure Class, Specifications - ASME: ASME B1.20.1, Specifications - ASTM: ASTM B-62 C-83600, ASTM B-85 SC114A, ASTM B-505 C-83600, Specifications - MSS: MSS SP-80, Screwed Valve Bonnet Type, Bronze Valve Disc, Valve Operator: Hand Wheel, Valve Size: 2-1/2 in., Red Brass Valve Stem, Other Physical Dimensions: 202mm Inlet Centre to Top of Valve, 125mm Wheel Diameter, 0.86 MPa Saturated Steam Working Pressure, 87 Flow Co-Efficient (Cv)

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	150mm
Material	Cast Bronze
End Connection 1	Threaded
End Connection 2	Threaded
Flow Co-Efficient (Cv)	87
Handle Material	Aluminum Alloy
Pressure - Maximum	1.37 MPa WOG (Non-Shock)
Pressure Class	125#
Specifications - ASME	ASME B1.20.1
Specifications - MSS	MSS SP-80
Valve Bonnet Type	Screwed
Valve Disc Material	Bronze
Valve Operator	Hand Wheel
Valve Size	2-1/2 in.
Valve Stem Material	Red Brass
Working Pressure	0.86 MPa Saturated Steam
