RAW2201E

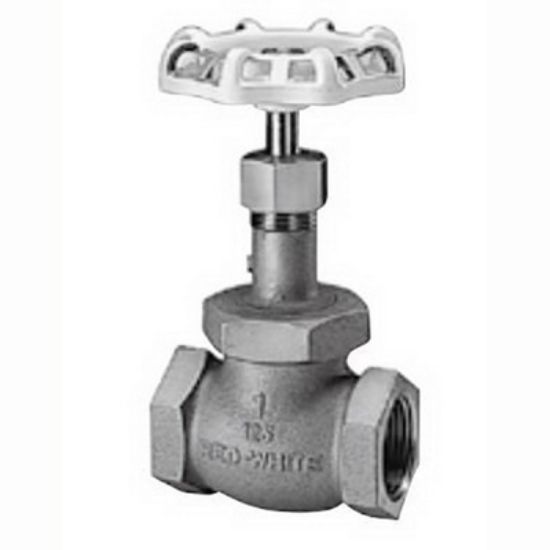

Toyo 220A 125# Cast Bronze Screwed Bonnet Hand Wheel Globe Valve, 1-1/4 in., Threaded

Manufacturer: Red & White

$0.00

Qty:

Toyo Globe Valve, Model: 220A, 88mm Length, Cast Bronze, End Connection 1: Threaded, End Connection 2: Threaded, Aluminum Alloy Handle, Pressure - Maximum: 1.37 MPa WOG (Non-Shock), 125# Pressure Class, Specifications - ASME: ASME B1.20.1, Specifications - ASTM: ASTM B-584, ASTM B-86 SC114A, Specifications - MSS: MSS SP-80, Screwed Valve Bonnet Type, R-PTFE Valve Disc, Valve Operator: Hand Wheel, PTFE Valve Seat, Valve Size: 1-1/4 in., DZR Brass Valve Stem, Other Physical Dimensions: 140mm Open Inlet Centre to Top of Valve, 90mm Wheel Diameter, 0.86 MPa Saturated Steam Working Pressure

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	88mm
Material	Cast Bronze
End Connection 1	Threaded
End Connection 2	Threaded
Handle Material	Aluminum Alloy
Pressure - Maximum	1.37 MPa WOG (Non-Shock)
Pressure Class	125#
Specifications - ASME	ASME B1.20.1
Specifications - MSS	MSS SP-80
Valve Bonnet Type	Screwed
Valve Disc Material	R-PTFE
Valve Operator	Hand Wheel
Valve Seat Material	PTFE
Valve Size	1-1/4 in.
Valve Stem Material	DZR Brass
Working Pressure	0.86 MPa Saturated Steam
