Picture of 221A 1/2" IP BZ #150 GLOBE VALVE

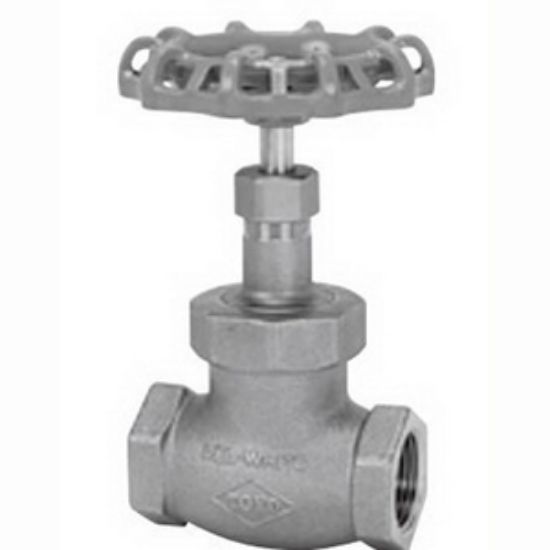

221A 1/2" IP BZ #150 GLOBE VALVE

Toyo 221A 150# Cast Bronze Screwed Bonnet Hand Wheel Globe Valve, 1/2 in., Threaded
Manufacturer: Red & White
$0.00
Toyo Globe Valve, Model: 221A, 64mm Length, Cast Bronze, End Connection 1: Threaded, End Connection 2: Threaded, Aluminum Alloy Handle, Pressure - Maximum: 2.06 MPa WOG (Non-Shock), 150# Pressure Class, Specifications - ASME: ASME B1.20.1, Specifications - ASTM: ASTM B-62 C-83600, ASTM B-85 SC114A, ASTM B-505 C-83600, Specifications - MSS: MSS SP-80, Screwed Valve Bonnet Type, R-PTFE Valve Disc, Valve Operator: Hand Wheel, R-PTFE Valve Seat, Valve Size: 1/2 in., Red Brass Valve Stem, Other Physical Dimensions: 117mm Open Inlet Centre to Top of Valve, 70mm Wheel Diameter, 1.03 MPa Saturated Steam Working Pressure
Products specifications
products.specs.attributename products.specs.attributevalue
End Connection Threaded x Threaded
End Connection 1 Threaded
End Connection 2 Threaded
Length 2-1/2 in.
Material Cast Bronze
Pressure - Maximum 2.06 MPa WOG
Pressure Class 150#
Size 1/2 in.
Specifications - ASME ASME B1.20.1
Specifications - MSS MSS SP-80
Valve Bonnet Type Screwed
Valve Disc Material R-PTFE
Valve Operator Hand Wheel
Valve Seat Material R-PTFE
Valve Size 1/2 in.
Product Type Globe Valves
