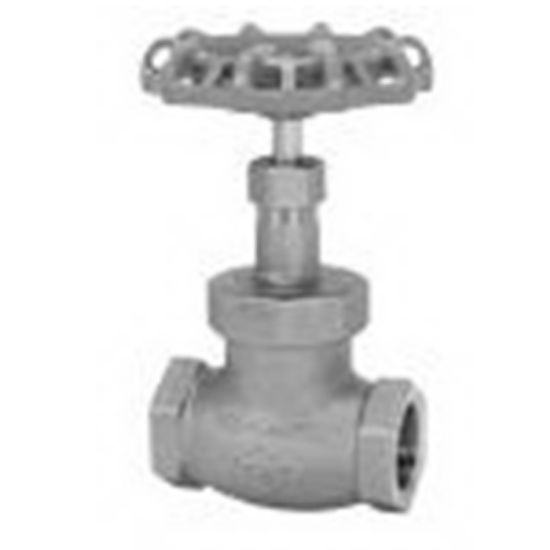

Picture of 221A 3/4" IP BZ #150 GLOBE VALVE

221A 3/4" IP BZ #150 GLOBE VALVE

Red & White 003-21109 3/4 in. Threaded 150# Cast Bronze Hand Wheel Globe Valve
Manufacturer: Red & White
$0.00
Toyo Globe Valve, Model: 221A, 78mm Length, Cast Bronze, End Connection 1: Threaded, Pressure - Maximum: 2.06 MPa WOG (Non-Shock), End Connection 2: Threaded, Specifications - ASTM: ASTM B-62 C-83600, ASTM B-85 SC114A, ASTM B-505 C-83600, Other Physical Dimensions: 136mm Inlet Centre to Top of Valve, 90mm Wheel Diameter, Valve Operator: Hand Wheel, R-PTFE Valve Seat, Valve Size: 3/4 in., Aluminum Alloy Handle, DZR Brass Valve Stem, R-PTFE Valve Disc, Specifications - ASME: ASME B1.20.1, Specifications - MSS: MSS SP-80, Pressure Class: 150#, 1.03 MPa Saturated Steam Working Pressure
Products specifications
products.specs.attributename products.specs.attributevalue
End Connection Threaded
End Connection 1 Threaded
End Connection 2 Threaded
Length 3-7/10 in.
Pressure Class 150#
Specifications - ASME ASME B1.20.1
Specifications - ASTM ASTM B-62 C-83600;ASTM B-85 SC114A;ASTM B-505 C-83600
Specifications - MSS MSS SP-80
Valve Disc Material R-PTFE
Valve Operator Hand Wheel
Valve Seat Material R-PTFE
Valve Size 3/4 in.
Valve Type Globe Valve
Product Type Globe Valves
Valve Body Material Cast Bronze
