RAW2362

236 2" 125 SWP THRD RED-WHITE

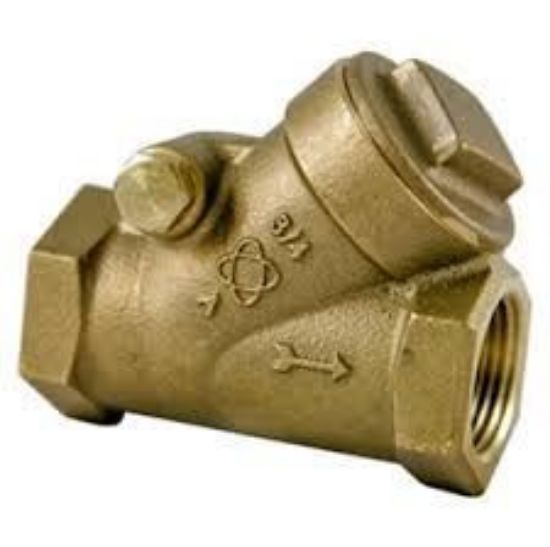

236A 2" 125# Cast Bronze Y-Pattern Style Swing Check Valve, Threaded

Manufacturer: Red & White

$0.00

Qty:

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	128mm
Material	Cast Bronze
End Connection 1	Threaded
End Connection 2	Threaded
Flow Co-Efficient (Cv)	92
Pressure - Maximum	200 psi WOG
Pressure Class	125#
Specifications - ASME	ASME B1.20.1
Specifications - MSS	MSS SP-80
Valve Body Style	Y-Pattern
Valve Disc Material	Brass or Bronze
Valve Size	2 in.
Working Pressure	0.86 MPa Saturated Steam
Size	2"
End	THRD
Body	Brass/Bronze
