RAW2362K

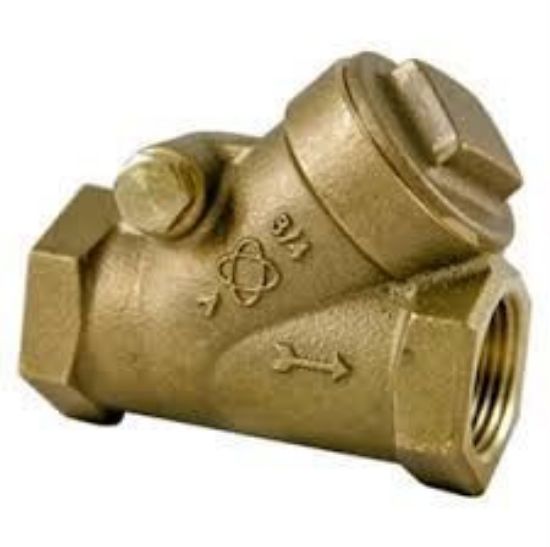

Toyo 236A 125# Cast Bronze Y-Pattern Style Swing Check Valve, 2-1/2 in., Threaded

Manufacturer: Red & White

$0.00

Qty:

Toyo Swing Check Valve, Model: 236A, 156mm Length, Cast Bronze, End Connection 1: Threaded, Pressure - Maximum: 200 psi WOG, End Connection 2: Threaded, Specifications - ASTM: ASTM B-62 C-83600, ASTM B-283 C-37700, Other Physical Dimensions: 119mm Inlet Centre to Top of Valve, Valve Size: 2-1/2 in., Brass or Bronze Valve Disc, Specifications - ASME: ASME B1.20.1, 162 Flow Co-Efficient (Cv), Specifications - MSS: MSS SP-80, Pressure Class: 125#, Valve Body Style: Y-Pattern, 0.86 MPa Saturated Steam Working Pressure

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	156mm
Material	Cast Bronze
End Connection 1	Threaded
End Connection 2	Threaded
Flow Co-Efficient (Cv)	162
Pressure - Maximum	200 psi WOG
Pressure Class	125#
Specifications - ASME	ASME B1.20.1
Specifications - MSS	MSS SP-80
Valve Body Style	Y-Pattern
Valve Disc Material	Brass or Bronze
Valve Size	2-1/2 in.
Working Pressure	0.86 MPa Saturated Steam
