RAW236Q

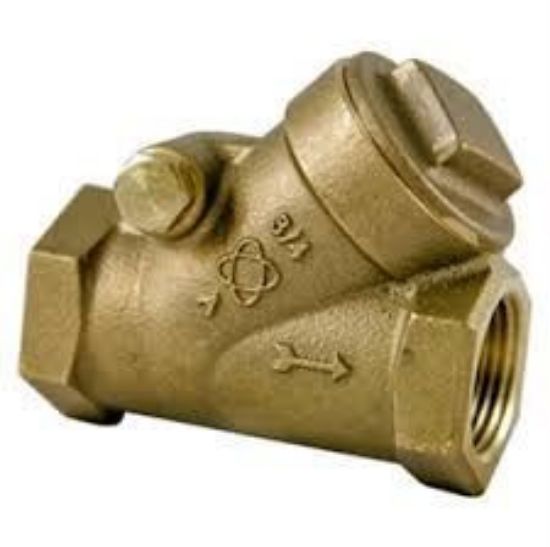

236A 3/4" Threaded 125# Cast Bronze Y-Pattern Style Swing Check Valve

Manufacturer: Red & White

$0.00

Qty:

Toyo Swing Check Valve, Model: 236A, 70mm Length, Cast Bronze, End Connection 1: Threaded, Pressure - Maximum: 200 psi WOG, End Connection 2: Threaded, Specifications - ASTM: ASTM B-62 C-83600, ASTM B-283 C-37700, Other Physical Dimensions: 49mm Inlet Centre to Top of Valve, Valve Size: 3/4 in., Brass or Bronze Valve Disc, Specifications - ASME: ASME B1.20.1, 9 Flow Co-Efficient (Cv), Specifications - MSS: MSS SP-80, Pressure Class: 125#, Valve Body Style: Y-Pattern, 0.86 MPa Saturated Steam Working Pressure

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	70mm
Material	Cast Bronze
End Connection 1	Threaded
End Connection 2	Threaded
Flow Co-Efficient (Cv)	9
Pressure - Maximum	200 psi WOG
Pressure Class	125#
Specifications - ASME	ASME B1.20.1
Specifications - MSS	MSS SP-80
Valve Body Style	Y-Pattern
Valve Disc Material	Brass or Bronze
Valve Size	3/4 in.
Working Pressure	0.86 MPa Saturated Steam
