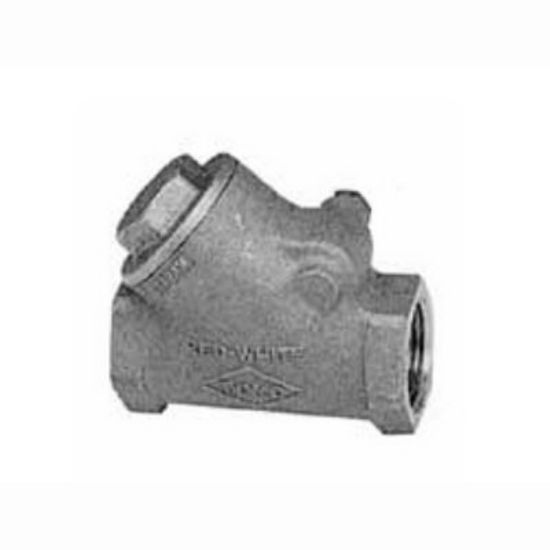

Picture of 236T 1-1/4" IP BZ #125 CHECK VALVE

236T 1-1/4" IP BZ #125 CHECK VALVE

Toyo 236T 125# Cast Bronze Y-Pattern Style Swing Check Valve, 1-1/4 in., Threaded
Manufacturer: Red & White
$0.00
Toyo Swing Check Valve, Model: 236T, 95mm Length, Cast Bronze, End Connection 1: Threaded, End Connection 2: Threaded, Pressure - Maximum: 200 psi WOG, 125# Pressure Class, Specifications - ASME: ASME B1.20.1, Specifications - ASTM: ASTM B-62 C-83600, ASTM B-283 C-37700, Specifications - MSS: MSS SP-80, Valve Body Style: Y-Pattern, PTFE Valve Disc, PTFE Valve Seat, Valve Size: 1-1/4 in., Other Physical Dimensions: 71mm Inlet Centre to Top of Valve, 0.86 MPa Saturated Steam Working Pressure, 36 Flow Co-Efficient (Cv)
Products specifications
products.specs.attributename products.specs.attributevalue
End Connection Threaded x Threaded
End Connection 1 Threaded
End Connection 2 Threaded
Length 3-3/4 in.
Material Cast Bronze
Pressure - Maximum 200 psi WOG
Pressure Class 125#
Size 1-1/4 in.
Specifications - ASME ASME B1.20.1
Specifications - MSS MSS SP-80
Valve Body Style Y-Pattern
Valve Disc Material PTFE
Valve Seat Material PTFE
Valve Size 1-1/4 in.
Product Type Check Valves
