RAW2371K

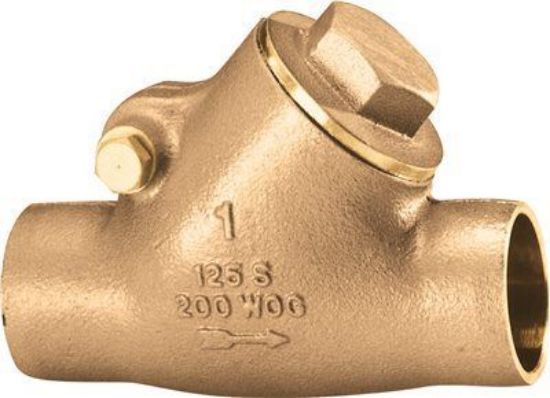

237A 1-1/2" Solder 125# Cast Bronze Y-Pattern Style Swing Check Valve

Manufacturer: Red & White

$0.00

Qty:

Toyo Swing Check Valve, Model: 237A, 137mm Length, Cast Bronze, End Connection 1: Solder (Copper), Pressure - Maximum: 200 psi WOG, End Connection 2: Solder (Copper), Specifications - ASTM: ASTM B-62 C-83600, ASTM B-283 C-37700, Other Physical Dimensions: 77mm Inlet Centre to Top of Valve, Valve Size: 1-1/2 in., Brass or Bronze Valve Disc, Specifications - ASME: ASME B16.18, Pressure Class: 125#, Valve Body Style: Y-Pattern, 0.86 MPa Saturated Steam Working Pressure

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	137mm
Material	Cast Bronze
End Connection 1	Solder (Copper)
End Connection 2	Solder (Copper)
Pressure - Maximum	200 psi WOG
Pressure Class	125#
Specifications - ASME	ASME B16.18
Valve Body Style	Y-Pattern
Valve Disc Material	Brass or Bronze
Valve Size	1-1/2 in.
Working Pressure	0.86 MPa Saturated Steam
