RAW280A2

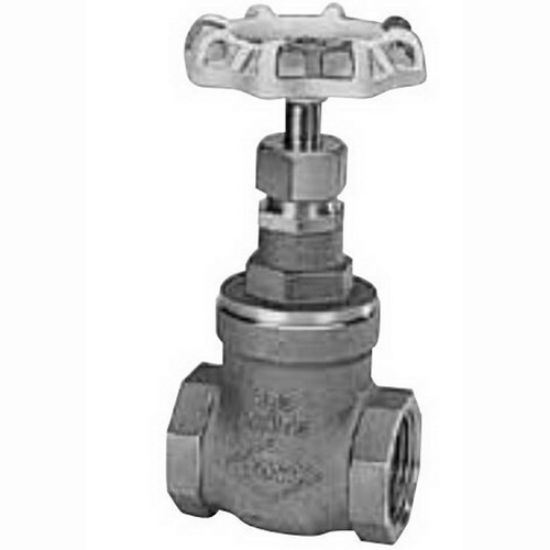

Toyo 280A 125# Bronze Hand Wheel Gate Valve, 2 in., Threaded

Manufacturer: Red & White

$0.00

Qty:

Toyo Gate Valve, Model: 280A, 2.91 in. Length, Bronze, End Connection 1: Threaded, End Connection 2: Threaded, Pressure - Maximum: 1.37 MPa WOG (Non-Shock), 125# Pressure Class, Specifications - MSS: MSS SP-80, Bronze Valve Disc, Valve Operator: Hand Wheel, Valve Size: 2 in., Bronze Valve Stem, Other Physical Dimensions: 7.44 in. Open Inlet Centre to Top of Valve, 3.93 in. Wheel Diameter, 0.86 MPa Saturated Steam Working Pressure

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	2.91 in.
Material	Bronze
End Connection 1	Threaded
End Connection 2	Threaded
Pressure - Maximum	1.37 MPa WOG (Non-Shock)
Pressure Class	125#
Specifications - MSS	MSS SP-80
Valve Disc Material	Bronze
Valve Operator	Hand Wheel
Valve Size	2 in.
Valve Stem Material	Bronze
Working Pressure	0.86 MPa Saturated Steam
