RAW3801E

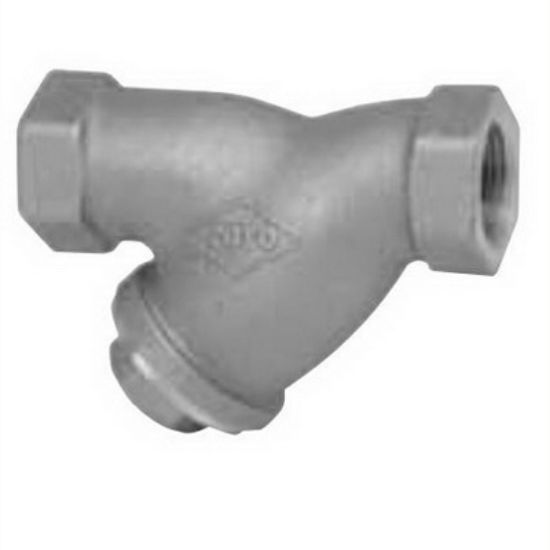

Toyo 003-68308 150# Cast Bronze Y Strainer, 1-1/4 in., Screwed NPT

Manufacturer: Red & White

$0.00

Qty:

Toyo Y Strainer, 380A Series, 135mm Length, Cast Bronze, End Connection 1: Screwed NPT, Fitting Size 1: 1-1/4 in., Water, Oil Recommended Valve Application, Pressure - Maximum: 20 bar (Non-Shock), 30 bar Test, Dimension: 82mm Inlet Centre to Cap End, 119.4 Holes Per sq-in, 150# Pressure Class

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	135mm
Material	Cast Bronze
Dimension	82mm Inlet Centre to Cap End
End Connection 1	Screwed NPT
Fitting Size 1	1-1/4 in.
Pressure - Maximum	20 bar (Non-Shock), 30 bar Test
Pressure Class	150#
Recommended Valve Application	Water, Oil
