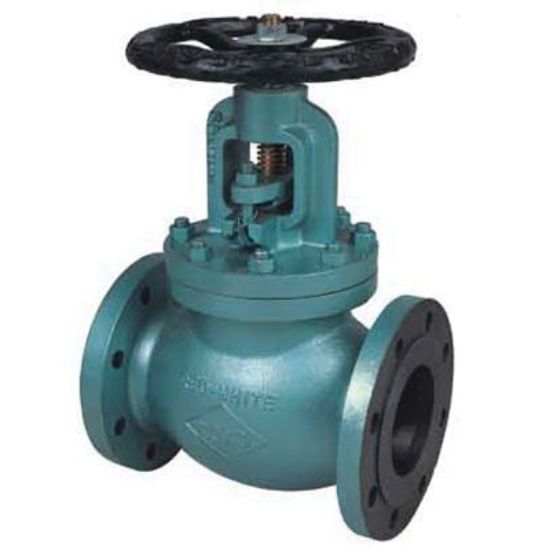

Picture of 400 3" FLG CI #125 GLOBE VALVE

400 3" FLG CI #125 GLOBE VALVE

Toyo 400A 125# Grey Cast Iron Hand Wheel Globe Valve, 3 in., Flanged
Manufacturer: Red & White
$0.00
Toyo Globe Valve, Model: 400A, 241mm Length, Cast Iron, End Connection 1: Flanged, Pressure - Maximum: 200 psi WOG, End Connection 2: Flanged, Specifications - ASTM: ASTM A-126-B, ASTM B-16 C-36000, Other Physical Dimensions: 19.1mm Flange Thickness x 190mm Flanged Diameter, 361mm Inlet Centre to Top of Valve, 200mm Wheel Diameter, 152mm Bolt Circle Diameter, 19mm Hole, 5/8 in. Bolt, 76mm Bore, Valve Operator: Hand Wheel, Bronze Valve Seat, Valve Size: 3 in., Cast Iron Handle, Brass Valve Stem, Cast Iron Valve Disc, Specifications - ASME: ASME B16.1, ASME B16.10, 126 Flow Co-Efficient (Cv), Coating: Grey, Specifications - MSS: MSS SP-85, Pressure Class: 125#, Brass Valve Trim, Number of Holes: 4-Flanged, 0.86 MPa Saturated Steam Working Pressure
Products specifications
products.specs.attributename products.specs.attributevalue
Coating Grey
End Connection Flanged x Flanged
End Connection 1 Flanged
End Connection 2 Flanged
Length 9-1/2 in.
Material Cast Iron
Pressure - Maximum 200 psi WOG
Pressure Class 125#
Size 3 in.
Specifications - ASME ASME B16.1;ASME B16.10
Specifications - MSS MSS SP-85
Valve Disc Material Cast Iron
Valve Operator Hand Wheel
Valve Seat Material Bronze
Valve Size 3 in.
Product Type Globe Valves
