RAW4156

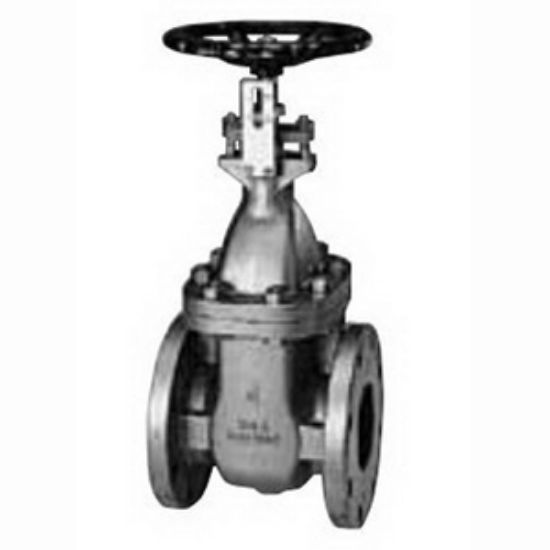

Toyo Gate Valve, Model: 415A, 267mm Length, Cast Iron, Coating: Grey, End Connection 1: Flanged, End Connection 2: Flanged, Ductile Iron Handle, Pressure - Maximum: 200 psi WOG, 125# Pressure Class, Specifications - ASME: ASME B16.1, ASME B16.10, Specifications - ASTM: ASTM B-124 C-37700, ASTM A-536 Grade 65-45-12, ASTM A-126-B, Specifications - MSS: MSS SP-70, Cast Iron Valve Disc, Valve Operator: Hand Wheel, Bronze Valve Seat, Valve Size: 6 in., Non-Rising Valve Stem, Brass Valve Stem, Non-Asbestos Valve Packing Material, Other Physical Dimensions: 25.4mm Flange Thickness x 279mm Flanged Diameter, 602mm Inlet Centre to Top of Valve, 300mm Wheel Diameter, 241.5mm Bolt Circle Diameter, 22mm Hole, 3/4 in. Bolt, 150mm Bore, 0.86 MPa Saturated Steam Working Pressure, Bronze Valve Trim, Number of Holes: 8-Flanged, 1920 Flow Co-Efficient (Cv)
