RAW4352K

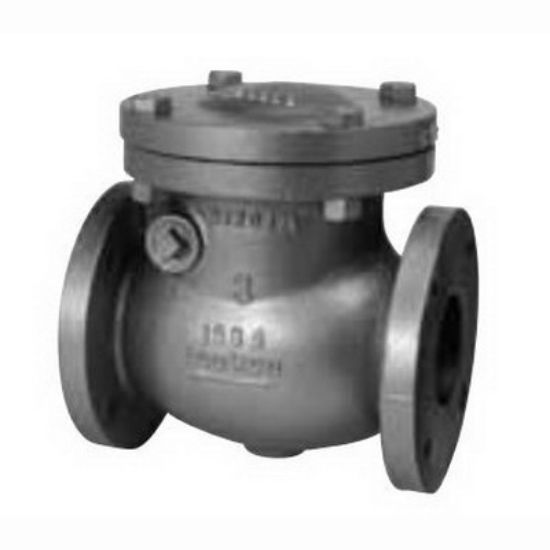

Toyo 435A 125# Cast Iron Check Valve, 2-1/2 in., Flanged

Manufacturer: Red & White

$0.00

Qty:

Toyo Check Valve, Model: 435A, 216mm Length, Cast Iron, Coating: Grey, End Connection 1: Flanged, End Connection 2: Flanged, Pressure - Maximum: 200 psi WOG, 125# Pressure Class, Specifications - ASME: ASME B16.1, ASME B16.10, Specifications - ASTM: ASTM A-126-B, Specifications - MSS: MSS SP-71, Cast Iron Valve Disc, Bronze Valve Seat, Valve Size: 2-1/2 in., Brass Valve Stem, Other Physical Dimensions: 17.5mm Flange Thickness x 178mm Flanged Diameter, 162mm Inlet Centre to Top of Valve, 140mm Bolt Circle Diameter, 19mm Hole, 5/8 in. Bolt, 64mm Bore, 0.86 MPa Saturated Steam Working Pressure, Bronze Valve Trim, Number of Holes: 4-Flanged, 143 Flow Co-Efficient (Cv)

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	216mm
Material	Cast Iron
Coating	Grey
End Connection 1	Flanged
End Connection 2	Flanged
Flow Co-Efficient (Cv)	143
Number of Holes	4-Flanged
Pressure - Maximum	200 psi WOG
Pressure Class	125#
Specifications - ASME	ASME B16.1, ASME B16.10
Specifications - MSS	MSS SP-71
Valve Disc Material	Cast Iron
Valve Seat Material	Bronze
Valve Size	2-1/2 in.
Valve Stem Material	Brass
Valve Trim Material	Bronze
Working Pressure	0.86 MPa Saturated Steam
