RAW4354

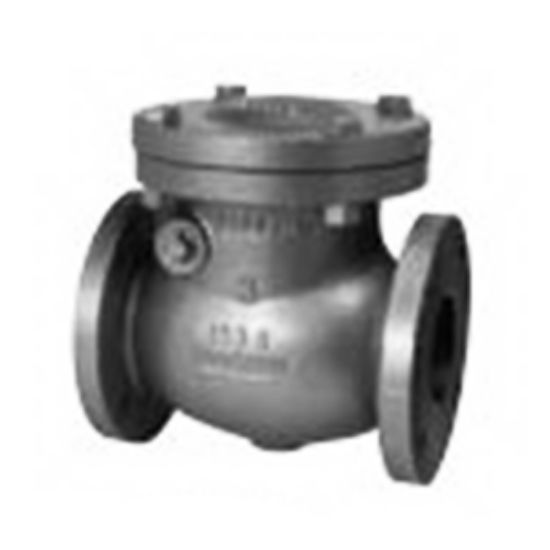

Toyo 435A 125# Grey Cast Iron Swing Check Valve, 4 in., Flanged

Manufacturer: Red & White

$0.00

Qty:

Toyo Swing Check Valve, Model: 435A, 292mm Length, Cast Iron, End Connection 1: Flanged, Pressure - Maximum: 200 psi WOG, End Connection 2: Flanged, Specifications - ASTM: ASTM A-126-B, Other Physical Dimensions: 23.9mm Flange Thickness x 229mm Flanged Diameter, 220mm Inlet Centre to Top of Valve, 191mm Bolt Circle Diameter, 19mm Hole, 5/8 in. Bolt, 102mm Bore, Bronze Valve Seat, Valve Size: 4 in., Brass Valve Stem, Cast Iron Valve Disc, Specifications - ASME: ASME B16.1, ASME B16.10, 440 Flow Co-Efficient (Cv), Coating: Grey, Specifications - MSS: MSS SP-71, Pressure Class: 125#, Bronze Valve Trim, Number of Holes: 8-Flanged, 0.86 MPa Saturated Steam Working Pressure

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	292mm
Material	Cast Iron
Coating	Grey
End Connection 1	Flanged
End Connection 2	Flanged
Flow Co-Efficient (Cv)	440
Number of Holes	8-Flanged
Pressure - Maximum	200 psi WOG
Pressure Class	125#
Specifications - ASME	ASME B16.1, ASME B16.10
Specifications - MSS	MSS SP-71
Valve Disc Material	Cast Iron
Valve Seat Material	Bronze
Valve Size	4 in.
Valve Stem Material	Brass
Valve Trim Material	Bronze
Working Pressure	0.86 MPa Saturated Steam
