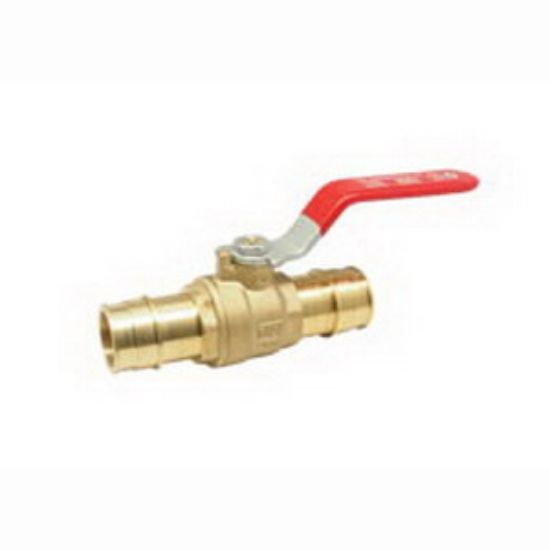

Picture of 5015AB LLC 3/4" F1960 BRS #400 BLL V

5015AB LLC 3/4" F1960 BRS #400 BLL V

Red & White 004-46161 Model 5015AB Lead Free 3/4 in. PEX Barb Brass Lever Handle Ball Valve
Manufacturer: Red & White
$0.00
Red-WhReduced Port Ball Valve, Model: 5015AB, 3.23 in. Width, DZR Brass, End Connection 1: PEX Barb, End Connection 2: PEX Barb, Lead Law Compliant: Yes, Pressure - Maximum: 400 psi at 15 - 160F WOG, 150 psi at 200F, Specifications - ASTM: ASTM F-1960, ASTM C-W511L, ASTM A-36, Specifications - NSF: NSF 61G and 372, Specifications - NSF Certified: Yes, Valve Size: 3/4 in., Virgin PTFE Valve Seat, DZR Brass Valve Stem, NBR O-Ring Valve Seal, Brass Ball Valve Trim, 1/2 in. Opening Size, Dimension: 1.77 in. Inlet Centre to Top of Handle, 3.58 in. Handle Length, Valve Operator: Handle, Dacromet Plated Steel Handle
Products specifications
products.specs.attributename products.specs.attributevalue
End Connection PEX Barb
End Connection 1 PEX Barb
End Connection 2 Solder
Lead Law Compliant Yes
Material DZR Brass
Material Type DZR
Pressure - Maximum 400 psi
Recommended Valve Application Water;Oil;Gas
Specifications - ASTM ASTM F-1960;ASTM C-W511L;ASTM A-36
Specifications - NSF NSF 61 Annex G;NSF 372
Specifications - NSF Certified Yes
Style Name Model 5015AB
Valve Operator Lever Handle
Valve Seat Material Virgin PTFE
Valve Size 3/4 in.
Valve Stem Nickel-Plated
Valve Type Ball Valve
Width 3-20/87 in.
Product Type Ball Valves
