RAW5017ABQ

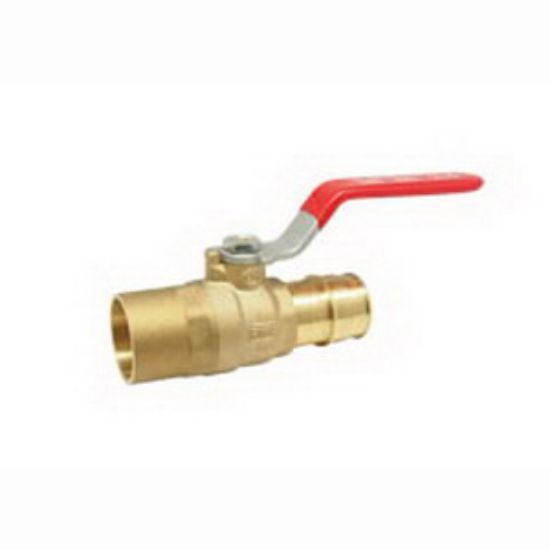

Red-Wh5017AB Lead-Free Brass Reduced Port Ball Valve, 3/4 in., PEX Barb x Solder

Manufacturer: Red & White

$0.00

Qty:

Red-WhReduced Port Ball Valve, Model: 5017AB, 2.93 in. Width, Brass, End Connection 1: PEX Barb, End Connection 2: Solder, Lead Law Compliant: Yes, Pressure - Maximum: 300 psi at 15 - 160F WOG, 150 psi at 200F, Specifications - ASTM: ASTM F-1960, ASTM A-36, Specifications - NSF: NSF 61G and 372, Specifications - NSF Certified: Yes, Valve Size: 3/4 in., Virgin PTFE Valve Seat, Brass Valve Stem, NBR O-Ring Valve Seal, Brass Ball Valve Trim, 1/2 in. Opening Size, Dimension: 1.77 in. Inlet Centre to Top of Handle, 3.58 in. Handle Length, Valve Operator: Handle, Dacromet Plated Steel Handle

Products specifications

products.specs.attributename	products.specs.attributevalue
Width	2.93 in.
Material	Brass
Dimension	1.77 in. Inlet Centre to Top of Handle, 3.58 in. Handle Length
End Connection 1	PEX Barb
End Connection 2	Solder
Handle Material	Dacromet Plated Steel
Lead Law Compliant	Yes
Opening Size	1/2 in.
Pressure - Maximum	300 psi at 15 - 160F WOG, 150 psi at 200F
Specifications - NSF	NSF 61G and 372
Specifications - NSF Certified	Yes
Valve Operator	Handle
Valve Seal Material	NBR O-Ring
Valve Seat Material	Virgin PTFE
Valve Size	3/4 in.
Valve Stem Material	Brass
Valve Trim Material	Brass Ball
