RAW5041LHE

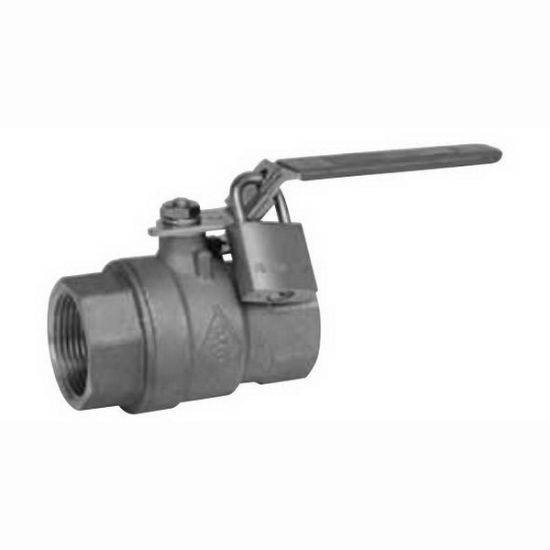

5041 Forged Brass Latch Lock Lever Handle Ball Valve, 1/4 in., Threaded

$0.00

Qty:

Ball Valve, Model: 5041, 41mm Length, Forged Brass, End Connection 1: Threaded, End Connection 2: Threaded, Pressure - Maximum: 600 psi WOG, Valve Operator: Latch Lock Lever Handle, PTFE Valve Seat, Valve Size: 1/4 in., 10mm Opening Size, Zinc-Plated Carbon Steel Handle, Specifications - ASME: ASME B1.20.1, Dimension: 35mm Inlet Centre to Top of Handle, 81mm Handle Length, Specifications - ASTM: ASTM B-283, Brass Ball Valve Trim

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	41mm
Material	Forged Brass
Dimension	35mm Inlet Centre to Top of Handle, 81mm Handle Length
End Connection 1	Threaded
End Connection 2	Threaded
Handle Material	Zinc-Plated Carbon Steel
Opening Size	10mm
Pressure - Maximum	600 psi WOG
Specifications - ASME	ASME B1.20.1
Valve Operator	Latch Lock Lever Handle
Valve Seat Material	PTFE
Valve Size	1/4 in.
Valve Trim Material	Brass Ball
