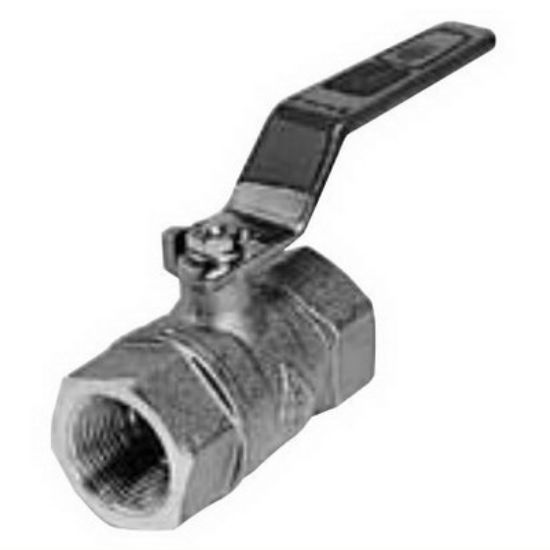

Picture of 5044A(F) 3" IP BZ #600 BALL VALVE

5044A(F) 3" IP BZ #600 BALL VALVE

Toyo 5044A Forged Brass Lever Handle Full Port 2-Piece Ball Valve, 3 in., Threaded
Manufacturer: Red & White
$0.00
Toyo Ball Valve, Model: 5044A, 167mm Length, Forged Brass, End Connection 1: Threaded, End Connection 2: Threaded, Pressure - Maximum: 600 psi WOG, Specifications - MSS: MSS SP-110, Specifications - UL Listed: Yes, Valve Body Style: 2-Piece, Valve Operator: Lever Handle, Full Port Valve Port Opening, PTFE Valve Seat, Valve Size: 3 in., 76mm Opening Size, PTFE Valve Packing Material, Zinc-Plated Carbon Steel Handle, Specifications - ASME: ASME B1.20.1, FKM O-Ring Valve Seal, Dimension: 112.5mm Inlet Centre to Top of Handle, 300mm Handle Length, Specifications - ASTM: ASTM B-283 C-37700, ASTM B-16, Nickel-Plated DZR Brass Valve Stem, Specifications - FM Approved: Yes, Brass Ball Valve Trim
Products specifications
products.specs.attributename products.specs.attributevalue
End Connection 1 Threaded
End Connection 2 Threaded
Length 167 mm
Material Forged Brass
Pressure - Maximum 600 psi WOG
Specifications - ASME ASME B1.20.1
Specifications - FM Approved Yes
Specifications - MSS MSS SP-110
Specifications - UL Listed Yes
Valve Body Style 2-Piece
Valve Operator Lever Handle
Valve Port Opening Full Port
Valve Seat Material PTFE
Valve Size 3 in.
Product Type Ball Valves
