RAW918BESG28

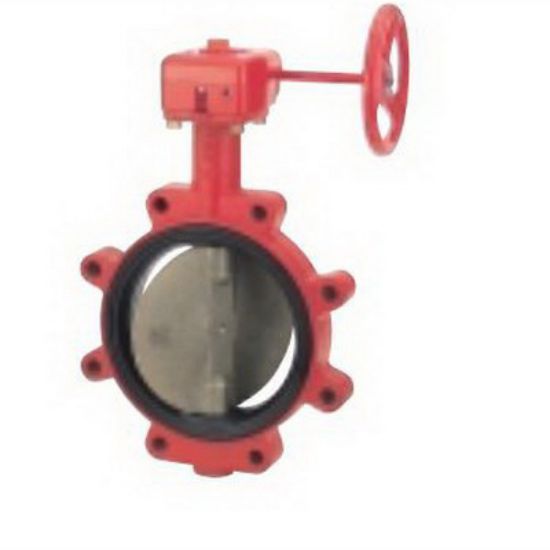

Toyo 918BESG2 Ductile Iron Gear Operator Lug Style Butterfly Valve, 8 in., Flanged

Manufacturer: Red & White

$0.00

Qty:

Toyo Butterfly Valve, Model: 918BESG2, Ductile Iron, End Connection 1: Flanged, End Connection 2: Flanged, Pressure - Maximum: 200 psi, 200# Pressure Class, Specifications - ASTM: ASTM A-536, A-276, A-536+ENP, Specifications - MSS: MSS SP-67, Valve Body Style: Lug, Aluminum Bronze Valve Disc, Valve Operator: Gear Operator, EPDM Valve Seat, Valve Size: 8 in., Dimension: 11-3/4 in. Actual Outside Diameter, 7.09 in. Centre to Top of the Gear Wheel, Coating: Chromate Coating, 410 Stainless Steel Valve Stem

Products specifications

products.specs.attributename	products.specs.attributevalue
Material	Ductile Iron
Coating	Chromate Coating
Dimension	11-3/4 in. Actual Outside Diameter, 7.09 in. Centre to Top of the Gear Wheel
End Connection 1	Flanged
End Connection 2	Flanged
Pressure - Maximum	200 psi
Pressure Class	200#
Specifications - MSS	MSS SP-67
Valve Body Style	Lug
Valve Disc Material	Aluminum Bronze
Valve Operator	Gear Operator
Valve Seat Material	EPDM
Valve Size	8 in.
Valve Stem Material	410 Stainless Steel
