RAW918BESL26

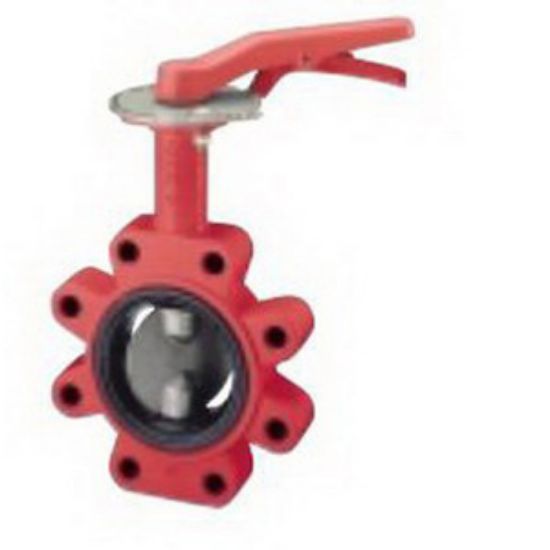

Toyo 918BESL2 Chromate Coated Ductile Iron Lever Handle Lug Style Butterfly Valve, 6 in., Flanged

Manufacturer: Red & White

$0.00

Qty:

Toyo Butterfly Valve, Model: 918BESL2, Ductile Iron, End Connection 1: Flanged, Pressure - Maximum: 200 psi, End Connection 2: Flanged, Specifications - ASTM: ASTM A-536, A-276, A-536+ENP, Valve Operator: Lever Handle, Valve Size: 6 in., Dimension: 241.5mm Actual Outside Diameter, 277mm Centre to Top of the Handle, 410 Stainless Steel Valve Stem, Aluminum Bronze Valve Disc, Coating: Chromate Coated, Pressure Class: 200#, Valve Body Style: Lug

Products specifications

products.specs.attributename	products.specs.attributevalue
Material	Ductile Iron
Coating	Chromate Coated
Dimension	241.5mm Actual Outside Diameter, 277mm Centre to Top of the Handle
End Connection 1	Flanged
End Connection 2	Flanged
Pressure - Maximum	200 psi
Pressure Class	200#
Valve Body Style	Lug
Valve Disc Material	Aluminum Bronze
Valve Operator	Lever Handle
Valve Size	6 in.
Valve Stem Material	410 Stainless Steel
