RAW9574P3

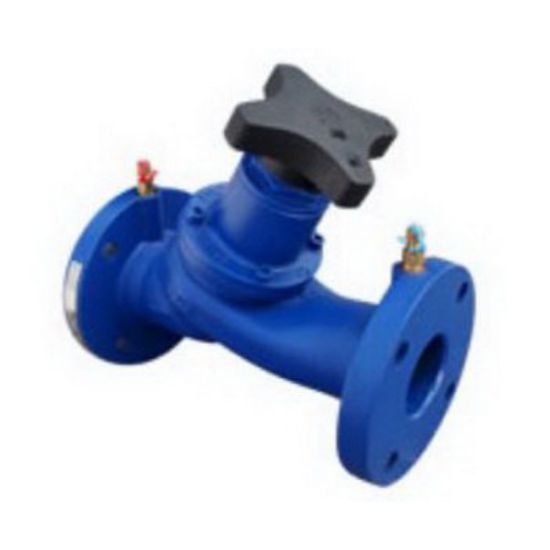

RWV 061-50106 125# Cast Iron Hand Wheel Circuit Balancing Valve, 3 in., Flanged

Manufacturer: Red & White

$0.00

Qty:

RWV Circuit Balancing Valve, 9574P Series, 12.2 in. Length, Material: Cast Iron, End Connection 1: Flanged, End Connection 2: Flanged, Maximum Temperature: 15 - 250F, Pressure Class: 125#, Recommended Valve Application: Water, Specifications - ASTM: ASTM A-48 Class 35B, ASTM C-35330, ASTM C-27200, Valve Operator: Hand Wheel, Valve Size: 3 in., Dimension: 7-1/2 in. Actual Outside Diameter, 8.7 in. Centre to Top, Coating: Alkyd/Acrylic Single Layer Waterpaint, Specifications - ASME: ASME B16.1, Polyamide Handle, Flow Rate: 101.4 - 243.5 gpm

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	12.2 in.
Material	Cast Iron
Coating	Alkyd/Acrylic Single Layer Waterpaint
Dimension	7-1/2 in. Actual Outside Diameter, 8.7 in. Centre to Top
End Connection 1	Flanged
End Connection 2	Flanged
Handle Material	Polyamide
Maximum Temperature	15 - 250F
Pressure Class	125#
Recommended Valve Application	Water
Specifications - ASME	ASME B16.1
Valve Operator	Hand Wheel
Valve Size	3 in.
