ROM202BS9622CC

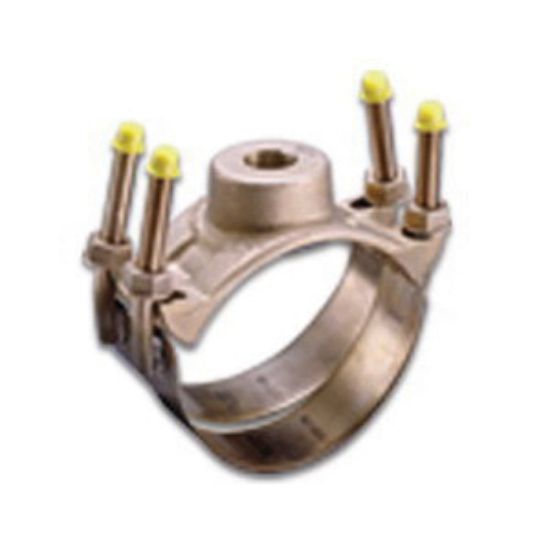

Romac 294-096271 Cast Bronze 2-Strap Service Saddle, 8 in., 8.63 - 9.62 in., 2 in. CC Tap

$0.00

Qty:

2-Strap Service Saddle, 202BS Series, 10-1/4 in. Length, 4-1/2 in. Width, Material: 85-5-5-5 Cast Bronze, Diameter - Outside: 8 in., Fits Pipe Size: 8.63 - 9.62 in., Pressure - Maximum: 200 psi, Specifications - ASTM: ASTM B-62, ASTM D-2000 MBC 610, ASTM A-240, ASTM A-194, Specifications - AWWA: AWWA C-800, Specifications - NSF: NSF 61, Tap Size: 2 in. CC, 16 in. Length x 2 in. Width Strap, 4.81 in. Radius, 1-1/2 in. Tap Height

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	10-1/4 in.
Width	4-1/2 in.
Material	85-5-5-5 Cast Bronze
Diameter - Outside	8 in.
Fits Pipe Size	8.63 - 9.62 in.
Pressure - Maximum	200 psi
Radius	4.81 in.
Specifications - AWWA	AWWA C-800
Specifications - NSF	NSF 61
Specifications - NSF Certified	Yes
Strap Size	16 in. Length x 2 in. Width
Tap Height	1-1/2 in.
Tap Size	2 in. CC
