MACRO HP 10"OS CPLG (11.00-12.20)

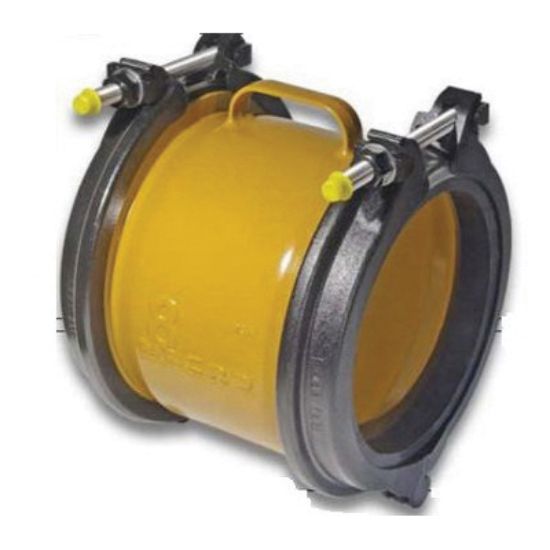

Romac MACRO HP 10XL Fusion Bonded Epoxy Ductile Iron 2-Bolt Extended Range Coupling, 10 in., 11 - 12.2 in.

$0.00

Qty:

Macro HP 2-Bolt Extended Range Coupling, 11.19 in. Length, 15.56 in. Width, 16.78 in. Height, Material: Ductile Iron, Nominal Size: 10 in., Colour/Finish Name: Fusion Bonded Epoxy, Fits Pipe Size: 11 - 12.2 in., 305 psi Working Pressure, Specifications - ASTM: ASTM A-536, ASTM D-2000, Number of Bolts: 2, Specifications - NSF: NSF 61

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	11.19 in.
Width	15.56 in.
Height	16.78 in.
Material	Ductile Iron
Colour/Finish Name	Fusion Bonded Epoxy
Fits Pipe Size	11 - 12.2 in.
Nominal Size	10 in.
Number of Bolts	2
Specifications - NSF	NSF 61
Specifications - NSF Certified	Yes
Working Pressure	305 psi
