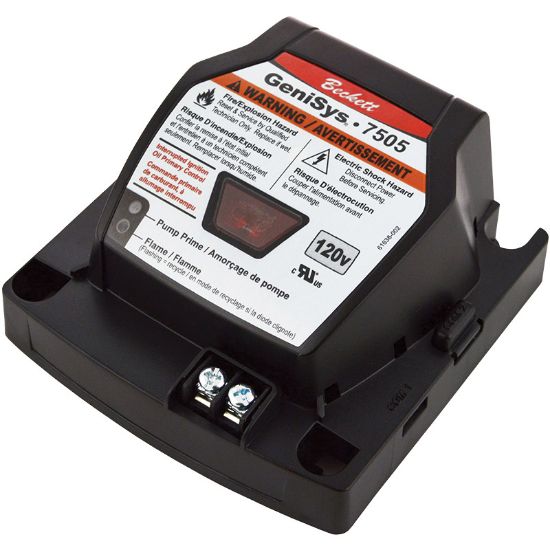

7505B1500U GENISYS PRIMARY OIL BURN CONT

Beckett GeniSys 7505 Oil Burner Control, 120 VAC at 60Hz, 150 mA, 15 sec. Lockout, Valve-On Delay, Less Than 20 gph Firing Rate

Manufacturer: RW Beckett

$0.00

Qty:

GeniSys Oil Burner Control, Model: 7505, Temperature Rating: -40 to 150F, AMP: 150 mA, 120 VAC Volts, 60Hz Frequency Rating, Environmental Conditions: 5 - 95% RH Non-Condensing and Non-Crystallizing, Safety Timing: 15 sec. Lockout, Valve-On Delay, Load Capacity: 120 VAC, 10A Full Load, 60A Locked Rotor Motor, 120 VAC, 3A at 0.7 PF Minimum Igniter, 120 VAC, 1A at 0.7 PF Minimum Solenoid Valve, 0.1A Thermostat Anticipator, 24 VAC Thermostat, Firing Rate: Less Than 20 gph

Products specifications

products.specs.attributename	products.specs.attributevalue
AMP	150 mA
Environmental Conditions	5 - 95% RH Non-Condensing and Non-Crystallizing
Firing Rate	Less Than 20 gph
Frequency Rating	60Hz
Load Capacity	120 VAC, 10A Full Load, 60A Locked Rotor Motor, 120 VAC, 3A at 0.7 PF Minimum Igniter, 120 VAC, 1A at 0.7 PF Minimum Solenoid Valve, 0.1A Thermostat Anticipator, 24 VAC Thermostat
Temperature Rating	-40 to 150F
Volts	120 VAC
