SIC5231620

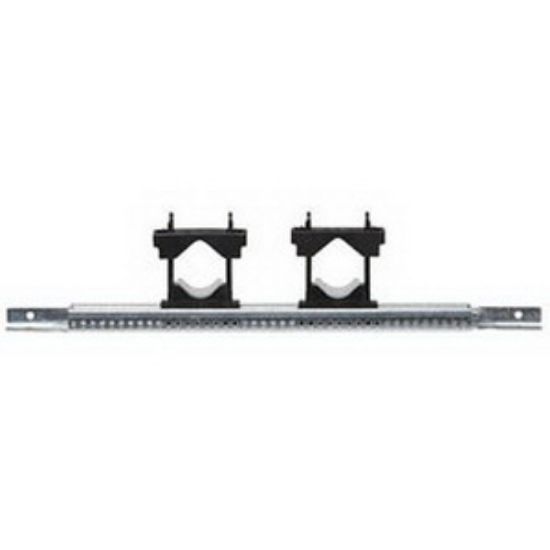

Sioux Chief PowerBar 523-1620 20 ga Steel Universal Bracket with Channel Clamp, 9 - 15 in. L x 0.602 in. W x 0.529 in. H

Manufacturer: Sioux Chief

$0.00

Qty:

PowerBar Universal Bracket with Channel Clamp, 523-16 Series, 9 - 15 in. Length, 0.602 in. Width, 0.529 in. Height, Material: 20 ga Steel, 90 - 66 lbs. at 9 - 15 in. Bracket Span Work Load Limit, Other Physical Dimension: 1-7/8 in. Channel Clamp Post, 1/4 - 1-1/8 in. Channel Clamp Capacity, 1-7/8 in. Channel Clamp Base, 0.0203 in. on Centre Pilot Hole Spacing, 1 in. Tab Length, 0.15 in. Tab Hole Diameter, 1 in. Tab Screw Length, Temperature Rating: -10 to 220F

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	9 - 15 in.
Width	0.602 in.
Height	0.529 in.
Material	20 ga Steel
Temperature Rating	-10 to 220F
Work Load Limit	90 - 66 lbs. at 9 - 15 in. Bracket Span
